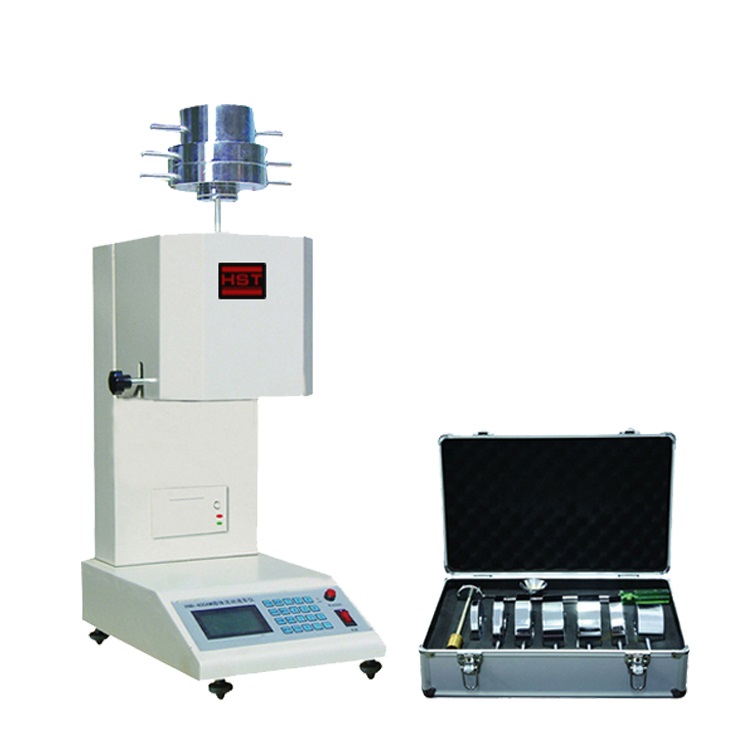

XNR-400B Melt Flow Index Tester
Application:
Melt Flow Index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such
as polyethylene, polypropylene, POM,ABS resin, Polycarbonate,Polycarbonate.
Characteristics:
1.Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2.Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3.Has the temperature calibration function
Technical parameters:
Model
XNR-400B
Measuring range
0.1-800.00g/10min(MFR)
0.1-800.00 cm3/10min(MVR)
Precision of temperature control
room temperature - 450°c
Precision of temperature
±0.2°c
Precision of timer
0.1s
Displacement precision
0.01mm
Load
full load
Cutting mode
manual, by time,automatic control
Screw barrel internal diameter
9.550mm ± 0.025mm
Screw barrel length
160mm
Cavity die
Tungsten carbide, L 8.000mm±0.025mm, internal diameter2.095mm ±0.005mm
Power
0.45 KW
Power supply
AC220V, 50Hz
Dimension
400mm ×500mm ×600mm
Net Weight
65kg
