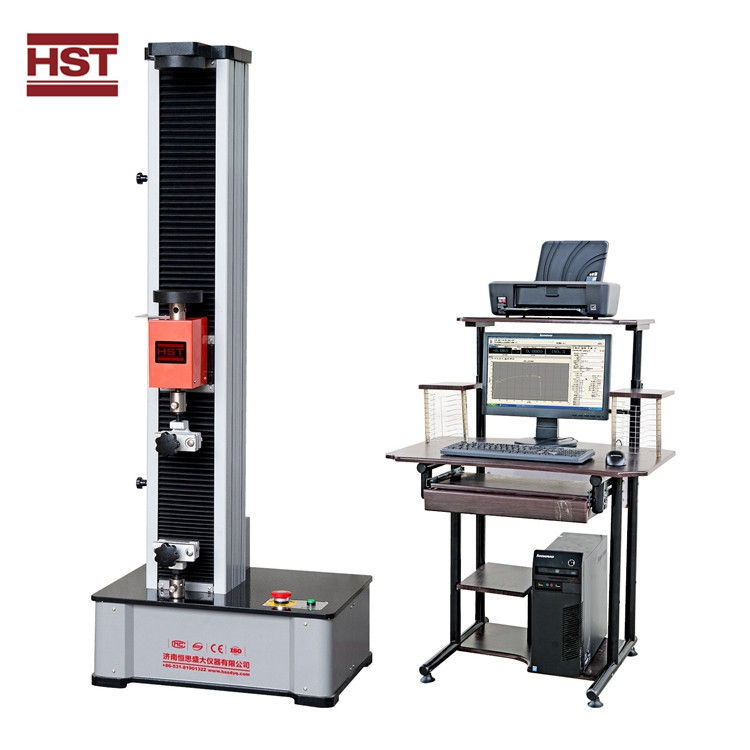

0.1-5KN Computer Control Electronic Universal Testing Machine

Product description:

5KN Computer Control Electronic Universal Testing Machine 1. Application It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal,

Share With:

We're here to help:
Easy ways to get the answers you need.
Send E-mail Chat Now


0.1-5KN Computer Control Electronic Universal Testing Machine

1. Application



It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.



2. Standards



ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,

 GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

3.Specifications



Model WDW-01,02,03,05,1,2,3,5

Structure Single column double spaces
Max. Load(kN) 0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5
Material All aluminum alloy surface spray painting shell
Load accuracy ISO 7500 Class 1/ Class 0.5
Load range 2%~100%F·S/ 0.2%~100%F·S
Load resolution 1/ 30000
Resolution of displacement 0.01mm
Test speed(mm/min) 0.05-500 stepless arbitrary setting
Speed accuracy within ±1% set speed
E-Tensile space(mm) 600 (can be customized)
E-Compression space(mm) 600 (can be customized)
D-Test width(mm) 100
F-Beam travel distance(mm) 772
H-Workbench thickness(mm) 26
G-Base height(mm) 158
Power supply AC220V±10%,50Hz/60Hz(can be customized)
Video show https://youtu.be/HY7xD6LTbug
