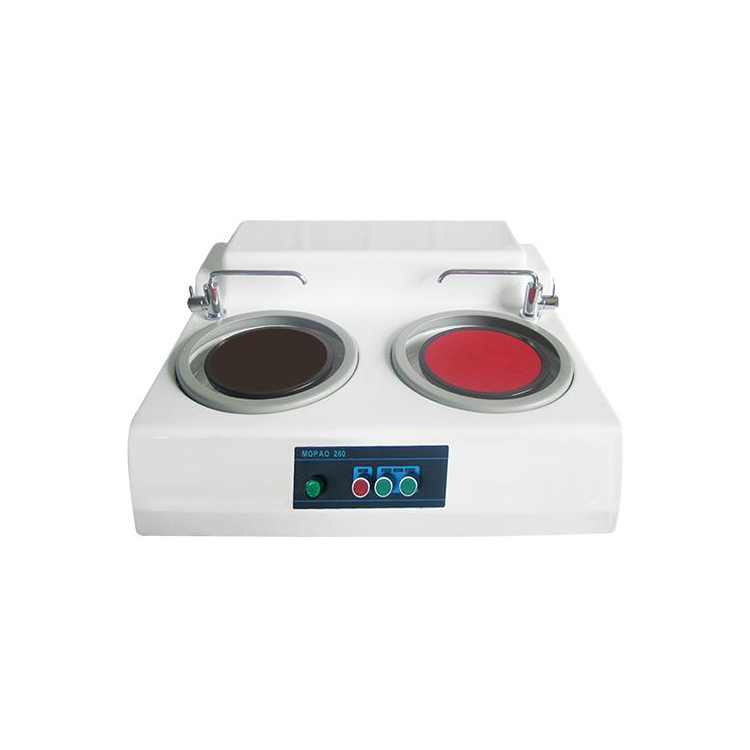

MoPao260 Metallographic Grinding and Polishing equipment
1. Application and Feature of Grinding-Polishing Machine
The grinding-polishing machine is a double-disc desktop, applicable to rough grinding, accurate grinding and polishing of metallographic sample. The machine has two-step constant speed of 150rpm and 300rpm, thus widening its application. The machine is an indispensable equipment in making the metallographic sample. The machine has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal sample preparation equipment for the labs of plants, research institutes and universities and colleges.
2. Main Specifications:
| Model | MoPao260 |
| Grinding/Polishing Disc Diameter | 250mm (203mm can be ordered) |
| Rotate speed | 300/600r/min(500/1000r/min 150/300r/min) can be customize |
| Grinding/Polishing disc quantity | 2 |
| Grinding/Polishing disc control | Single |
| Motor | 370W |
| Operating voltage | AC 380V 50HZ |
| Dimension | 725×710×310mm |
| Weight |
45kg |
