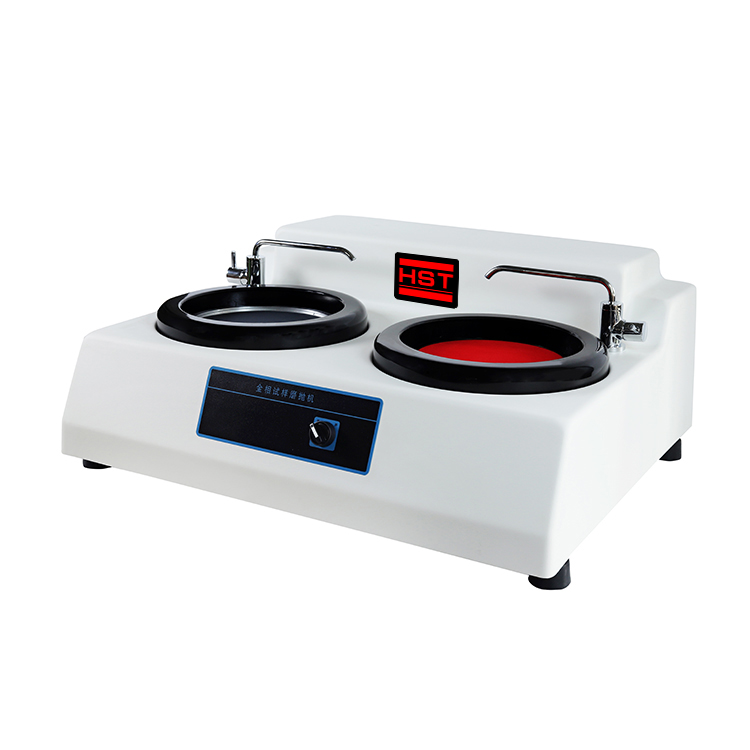

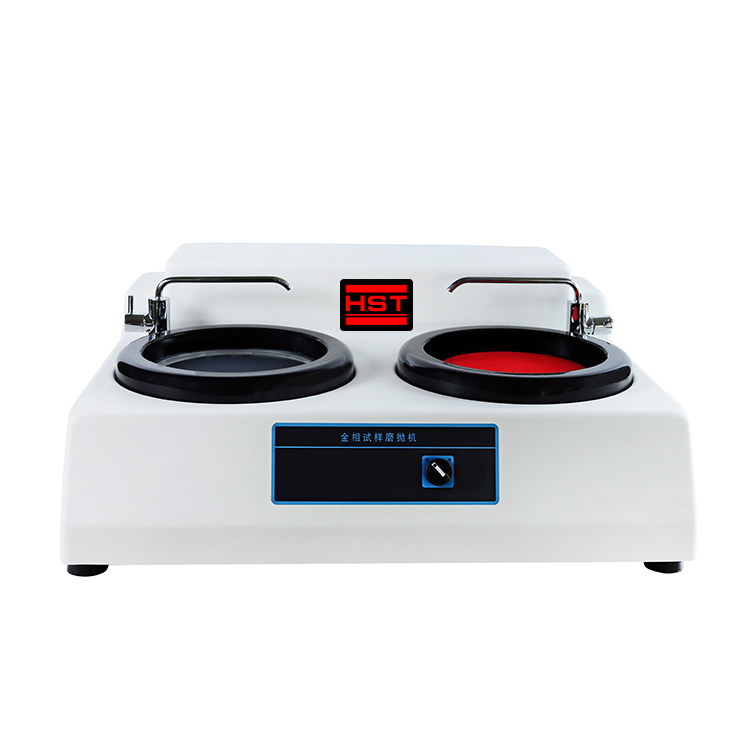

MP-2 Metallographic Specimen Grinding and Polishing Machine

MP-2 Metallographic Specimen Grinding and Polishing Machine
MP-2 Metallographic Specimen Grinding and Polishing Machine
MP-2 Metallographic Specimen Grinding and Polishing Machine

1. Application and Feature of Grinding-Polishing Machine

Model MP-2 Metallographic specimen grinding & polishing machine is equipped with double discs, and it can finish grinding or polishing with two different speeds. The rotating speed of left disc (pre-grinding disc) is 450 rpm and right disc (polishing disc) is 600 rpm. With double disc and different grinding and polishing materials, it can realize the process of rough grinding, fine grinding, rough polishing and finishing polishing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

2. Main Specifications:


Model MP-2
Grinding Disc Diameter 230mm
Polishing Disc Diameter 200mm
Grinding Disc Rotating Speed 450 rpm(left) 600rpm(right) can be ordered
Motor YC7124  370 W
Dimension 700×600×278mm
Weight 50kg
Operating voltage AC 220V,50Hz
