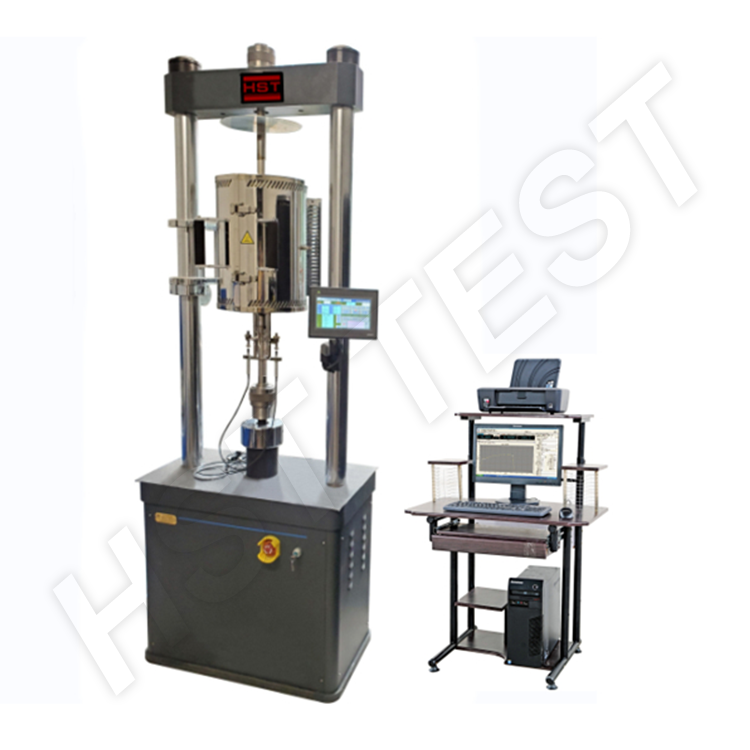

HSCTT Series Electronic High-temperature Endurance Creep Testing Machine
Testing machine is mainly used to measure performance and creep rupture strength properties of various metals and alloys at high temperatures, it is special equipment for studying and testing materials performance in the iron and steel metallurgy, aerospace, scientific research institutes, universities, and quality inspection departments.
2. Standards
ASTM E139 《Conducting Creep, Creep-Rupture, and Stress-RuptureTests of Metallic Materials1》；
ASTM E292《 Standard Test Methods for Conducting Time-for-Rupture NotchTension Tests of Materials》；
ASTM E1012《Standard Practice for Verification of Testing Frame and Specimen Alignment Under Tensile and Compressive Axial Force Application1》。
3. Specifications
|
Host parameters |
||||
|
Model |
HSCTT-10 |
HSCTT-20 |
HSCTT-50 |
HSCTT-100 |
|
Max. Load force(kN) |
10 |
20 |
50 |
100 |
|
Class |
0.5 |
|||
|
Load Range |
0.4%-100% |
|||
|
Resolution of Load Force |
1/300000 of Full Scale |
|||
|
Relative Error of Load force Reading |
±0.5% |
|||
|
Lower pull rod speed |
0.01-100mm/min |
|||
|
Lower Stroke |
200mm |
|||
|
Power Supply |
AC380V hearth size±10%；50Hz |
|||
|
Electric stove and temperature control system |
||||
|
High temperature stove type |
Folio-style atmosphere furnace |
|||
|
Temperature range |
300～1100℃ |
|||
|
Electric stove rise fall type |
manual rotary |
|||
|
Heating power |
5KW |
|||
|
Temperature controller variable |
conductive temperature controller (Japan) |
|||
|
Creep measurements |
||||
|
Test range of deformation |
0～10mm |
|||
|
Error of deformation reading |
≤0.5％FS |
|||
|
Resolution of deformation |
0.001mm |
|||
