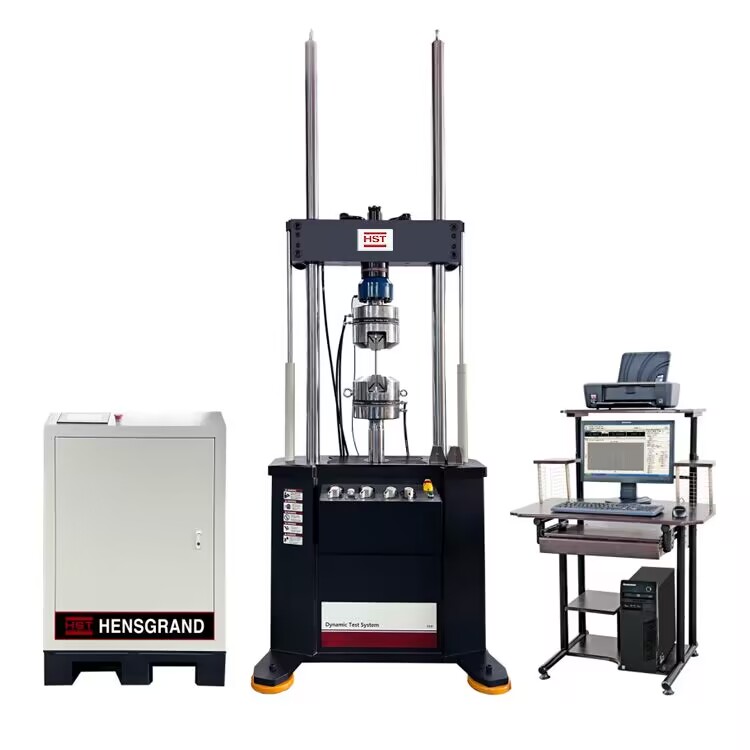

Pls-2014 electro-hydraulic servo component fatigue test system
Pls-2014 electro-hydraulic servo component fatigue test system is mainly used for vehicle component fatigue performance test. By changing the fixture, the high cycle, low cycle and fatigue crack test of materials and components can be completed. It can also be applied to fatigue test of mechanical industry, construction industry, aircraft, ship manufacturing industry and other parts.
Main technical specifications：
Main technical specifications：
| Maximum static test force | ±20KN indicator precision from 20%FS ≤ ±1% |
| Maximum dynamic test force | ±14KN Dynamic amplitude fluctuation ≤ ±1%FS |
| Actuator amplitude | ±75mm indicator from 20%FS≤ ±0.5%FS |
| Frequency range | 0.1-50HZ |
| The main waves | Sine wave, square wave, triangle wave, oblique wave, etc |
| Actuator installation | Horizontal, vertical and inclined installation |
|
Constant pressure servo Pump specifications |
45L/min、21MPa、22KW |
