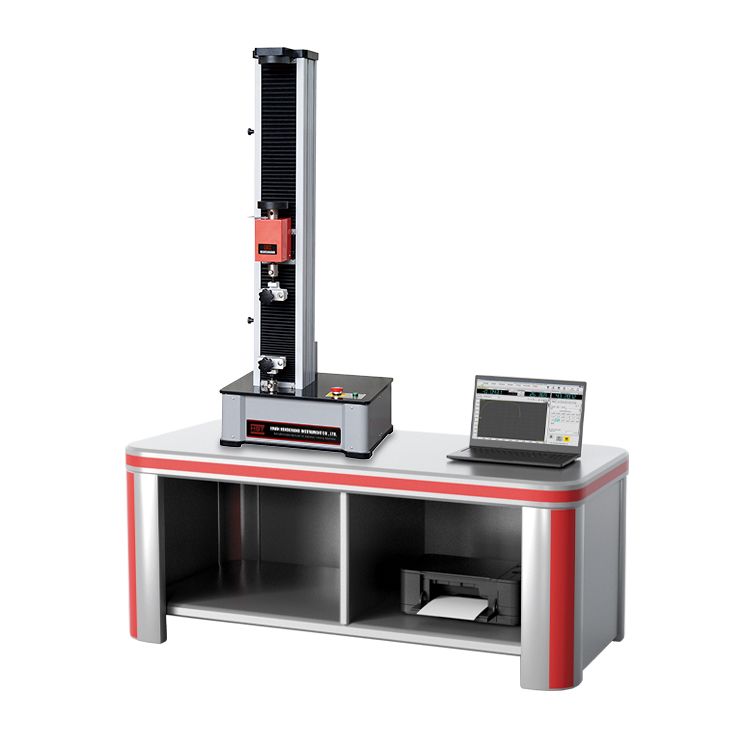

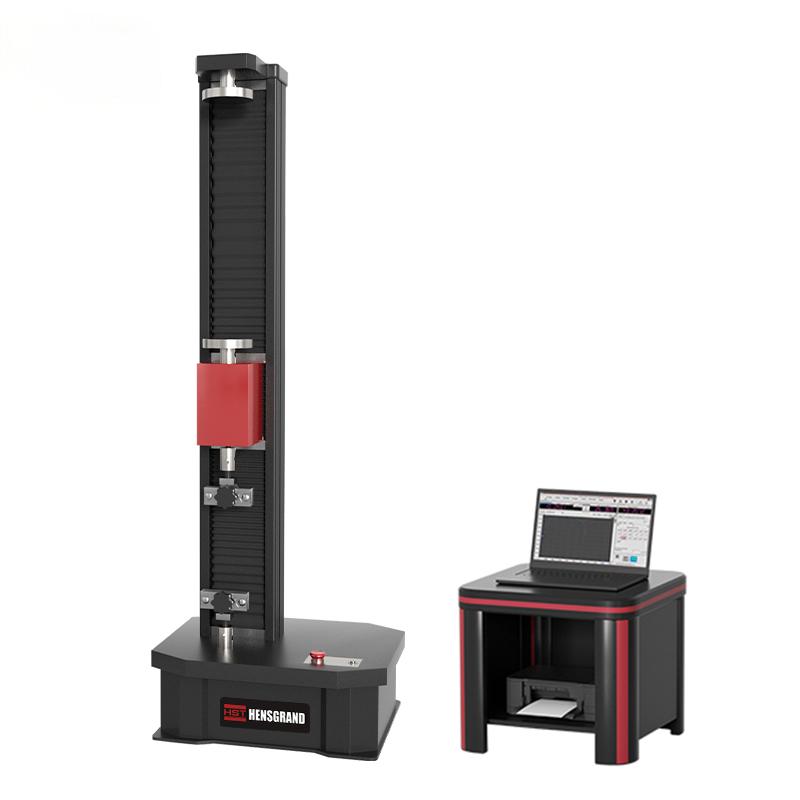

Fabric Tensile strength tester
HST Tension Test equipment of Fiber-Reinforced Polymeric Materials
Standards:
ASTM D751,ASTM D1683,ASTM D2208,ASTM D5034
Request A Quote Files Download
Fabric Tensile strength tester
Application
Fabric Tensile strength tester is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Fabric Tensile strength testerStandards
ASTM D751 – Standard Test Methods for Coated Fabrics (Breaking Strength, Procedure A)ASTM D1683 for woven apparel fabric seams
ASTM D2208 for soft, boarded, sueded, or embossed leather
ASTM D5034 – Standard Test Method for Breaking Strength and Elongation of Textile Fabrics (Grab Test)
ISO 13934-2
Fabric Tensile strength tester Specifications
|
Model |
WDW-01,02,03,05,1,2,3,5 |
|
Structure |
Single column double spaces |
|
Max. Load(kN) |
0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5 |
|
Material |
All aluminum alloy surface spray painting shell |
|
Load accuracy |
Class 0.5 |
|
Load range |
0.2%～100%F·S |
|
Load resolution |
1/500000 |
|
Resolution of displacement |
0.01mm |
|
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
|
Speed accuracy |
within ±1% set speed |
|
E-Tensile space(mm) |
600 (can be customized) |
|
E-Compression space(mm) |
600 (can be customized) |
|
D-Test width(mm) |
100 |
|
F-Beam travel distance(mm) |
772 |
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
