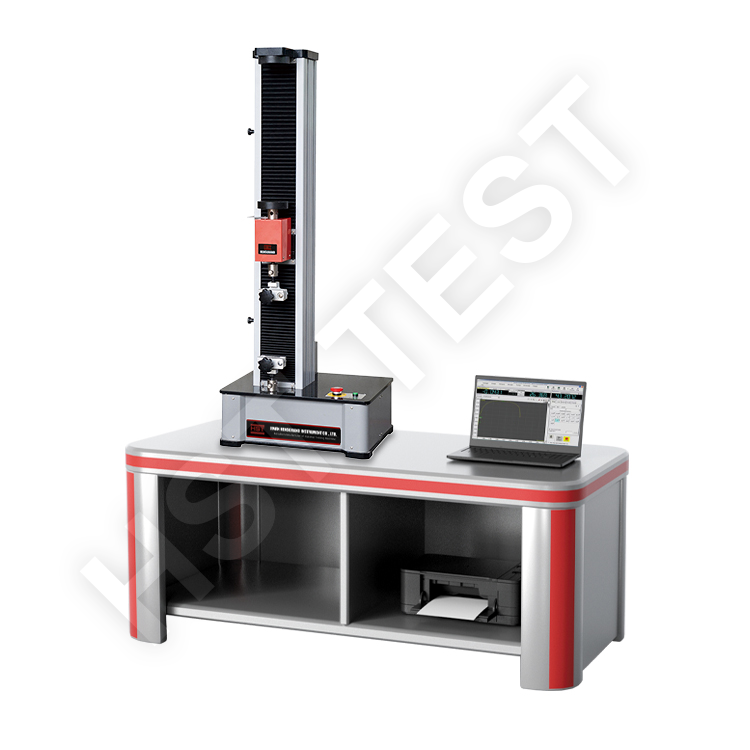

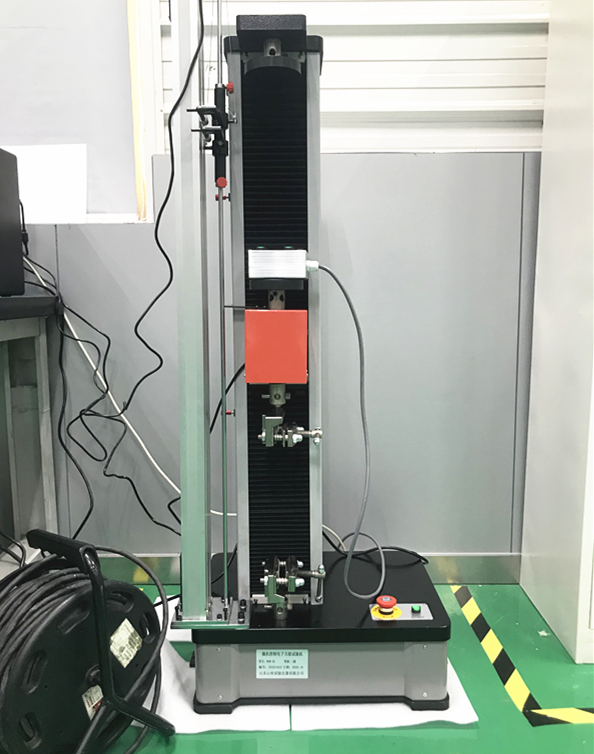

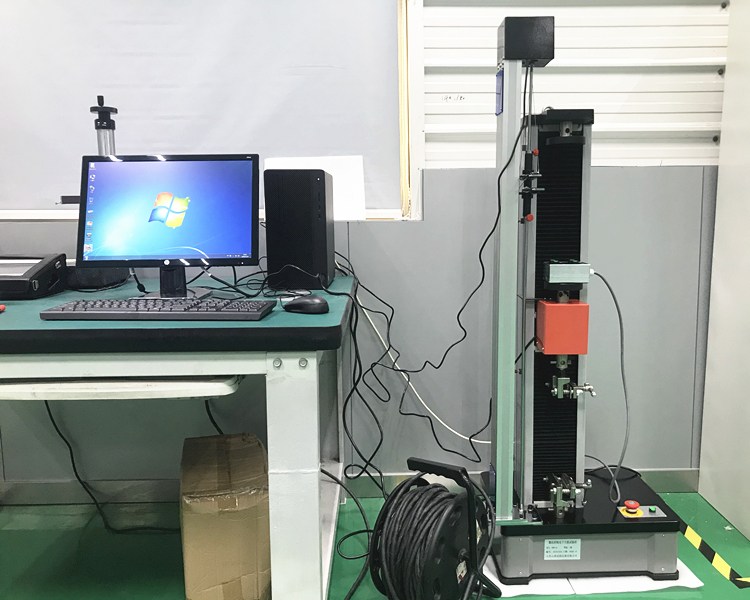

HSTWDW-5E 5KN Single column computer control Electromechanical universal testing machine
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
3.Specifications
Model
WDW-5E
Structure
Single column double spaces
Max. Load(kN)
Material
All aluminum alloy surface spray painting shell
Load accuracy
Class 0.5
Load range
0.2%～100%F·S
Load resolution
1/ 500000
Resolution of displacement
0.01mm
Test speed(mm/min)
0.001-1000 stepless arbitrary setting
Speed accuracy
no more than ±0.2%of set speed
E-Tensile space(mm)
600 (can be customized)
E-Compression space(mm)
600 (can be customized)
D-Test width(mm)
100
F-Beam travel distance(mm)
1000
Power supply
AC220V±10%，50Hz/60Hz(can be customized)
5
auto-return speed
0,001-1000 mm/min
sample thinckness
1-3 mm
Maximum travel of the traverse
1000mm
