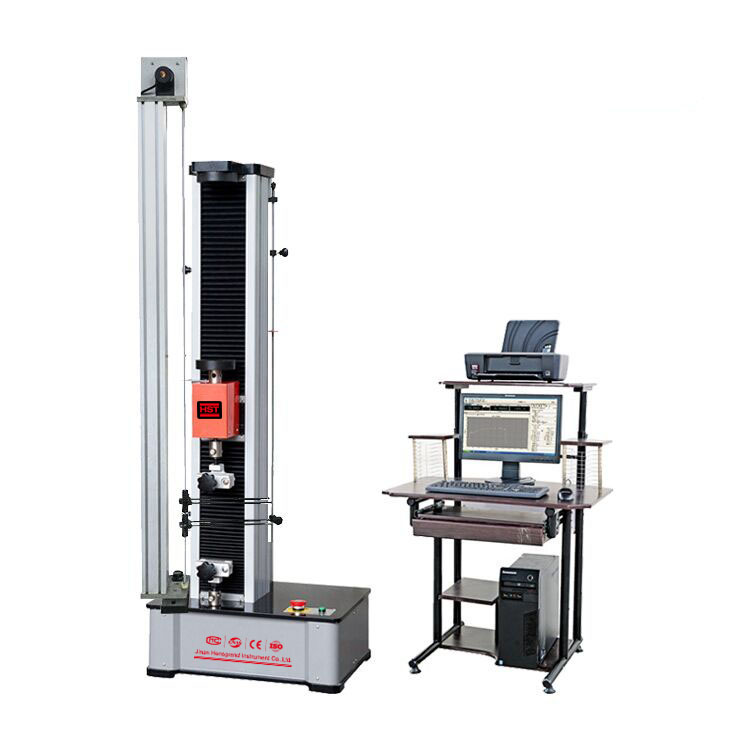

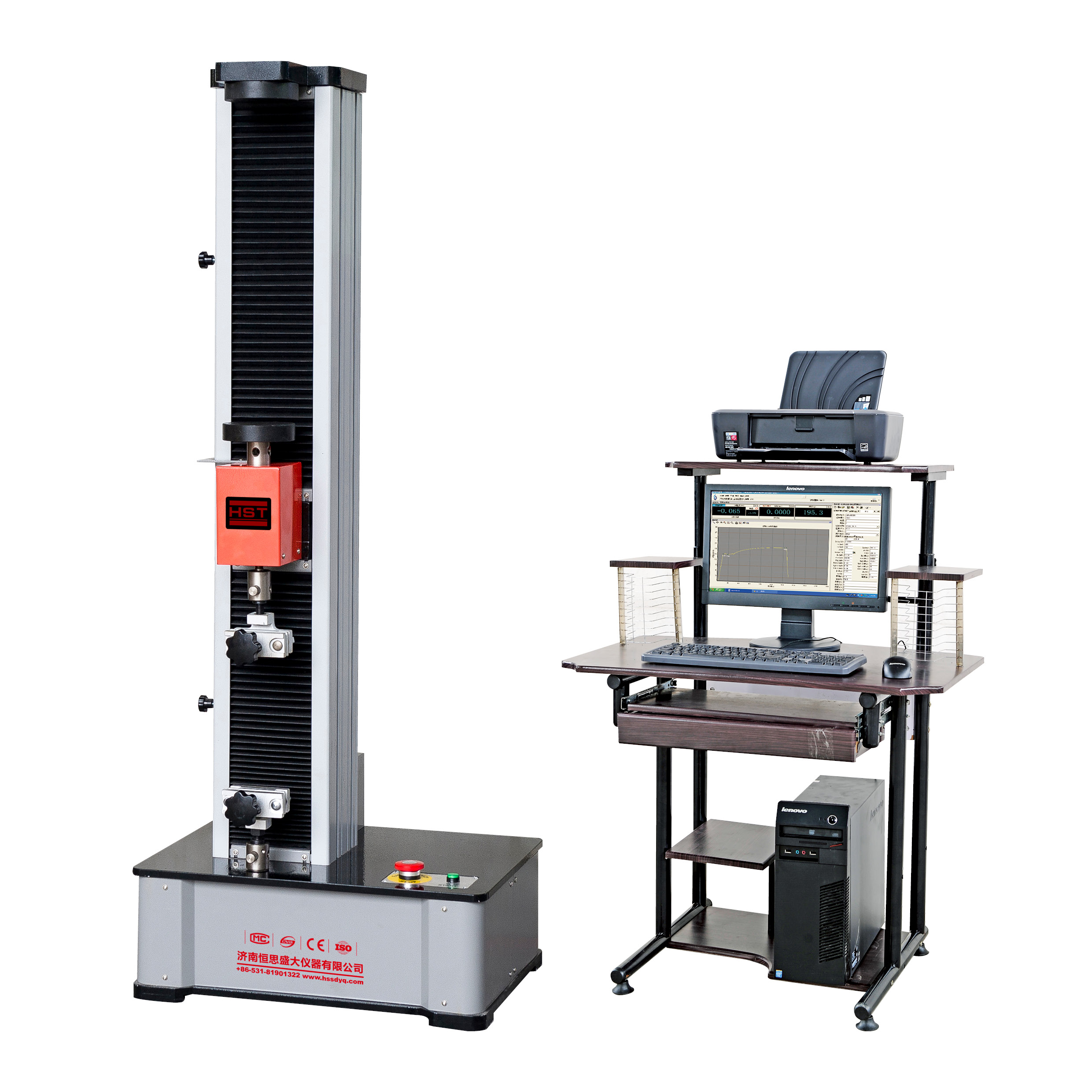

WDW-1,2,5 kN Computerized Tensile Testing Machine
Application：It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Request A Quote Files DownloadWDW-1,2,5 kN Computerized Tensile Testing Machine
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
|
Model |
HSTWDW-02E |
HSTWDW-05E |
HSTWDW-1E |
HSTWDW-2E |
HSTWDW-5E |
|
Structure |
Single column double spaces |
||||
|
Max. Load |
200N |
500N |
1000N |
2000N |
5000N |
|
Load accuracy |
ISO 7500 Class0.5 |
||||
|
Load range |
0.4%～100%F·S |
||||
|
Accuracy of test load |
≤±0.5% |
||||
|
Load resolution |
1/±500000FS |
||||
|
Resolution of displacement |
0.01mm |
||||
|
Test speed |
0.001-500mm/min |
||||
|
Speed accuracy |
within ±0.5% set speed |
||||
|
Crosshead Travelspace |
800mm/1000mm(Heighten model) |
||||
|
Tensile space |
600/800mm(Heighten model) |
||||
|
Compression space |
600/800mm(Heighten model) |
||||
|
Dimension(L*W*H) |
500x380x1320mm/min |
||||
|
Wight |
110kgApprox |
||||
|
Power supply |
AC22V±10%,50Hz/60Hz |
||||
