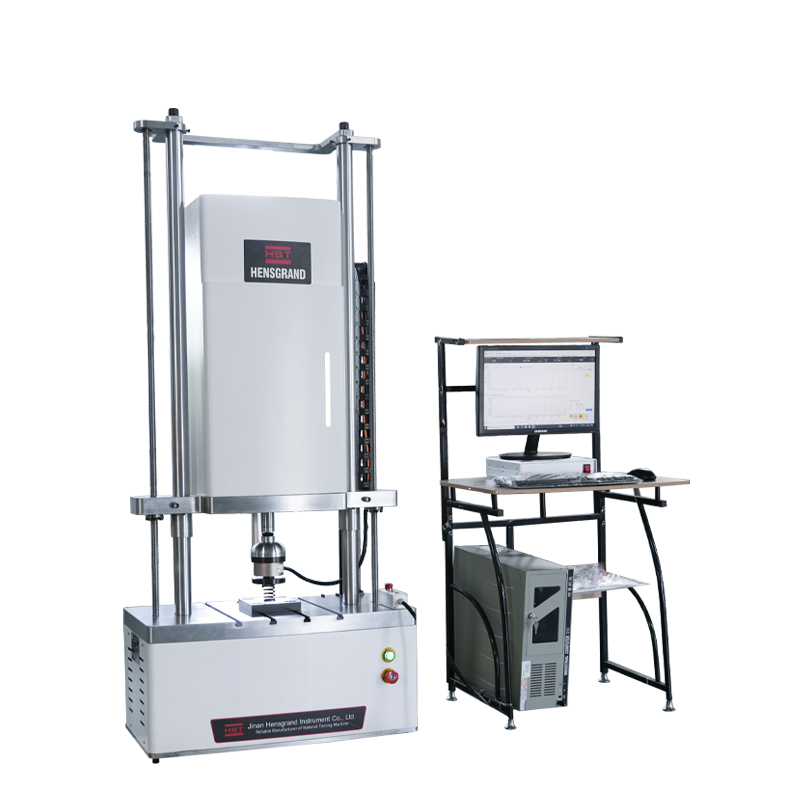

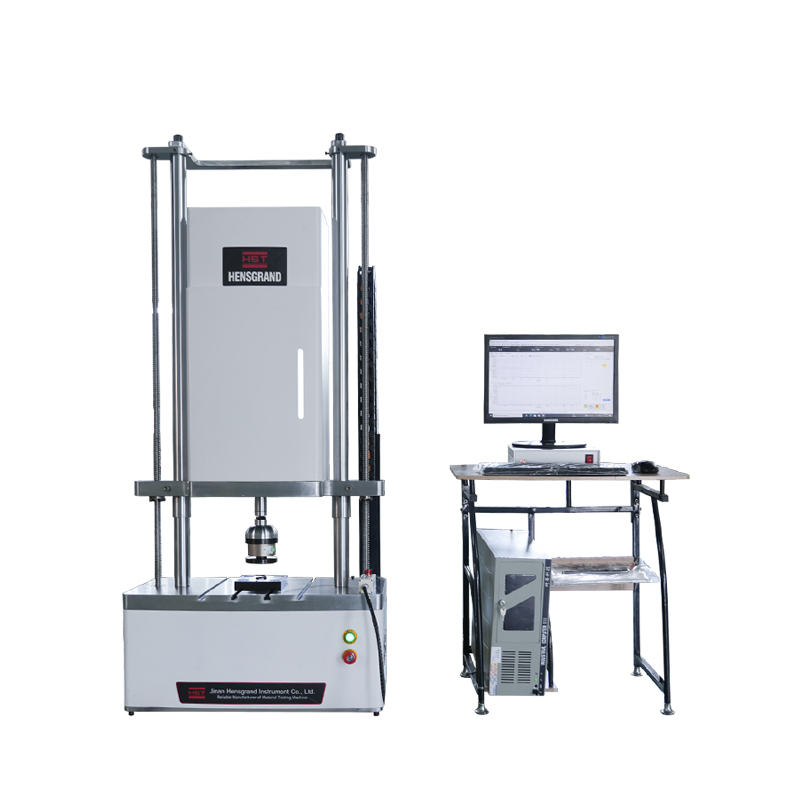

ASTM F1717-2010 electronic fatigue testing machine for Spinal Implant Constructs
ASTM F1717 covers the materials and methods for the static and fatigue testing of spinal implant assemblies in a vertebrectomy model. The test materials for most combinations of spinal implant components can be specific depending on the intended spinal location and intended method of application to the spine. ASTM F1717 tests include static compression bending, tension bending, and torsion tests.
By means of our orthopaedic testing expertise and modular product design, we will help find the testing solution that is right for you. Give one of our application engineers a call today for help with creating the best budget and testing plan according to ASTM F1717.
Main parameter
|
Model |
HST-EFT1A |
HST-EFT2A |
HST-EFT5A |
|
Max testing force |
±1000N |
±2000N |
±5000N |
|
Load frame |
Two-column platform type, cross beam electric adjustment |
||
|
Effective column width |
555 |
||
|
Test space |
550 |
||
|
Test force measuring range |
Dynamic 2%～100%FS |
||
|
Force accuracy and fluctuation |
1% better than indicated value; amplitude fluctuation is not greater than ± 1% F.S |
||
|
Load display resolution |
1/50000 |
||
|
Test force indication accuracy |
Dynamic ± 1%; static 0.5% |
||
|
Displacement measurement range |
150mm(±75mm) |
||
|
Displacement resolution |
0.001mmm |
||
|
Displacement indication accuracy |
Indication accuracy from 1%, within ± 0.5% FS |
||
|
Deformation |
Indication accuracy: 2%~ ± 0.5% |
||
|
Frequency rang |
standard machine 0.1-10HZ,can Optional 20HZ,30HZ,50HZ |
||
|
Accessories |
Standard :Compression, bend, shear etc.(option) |
||
|
Test waveform: |
sine wave, square wave, triangle wave, ramp wave, etc.
|
||
