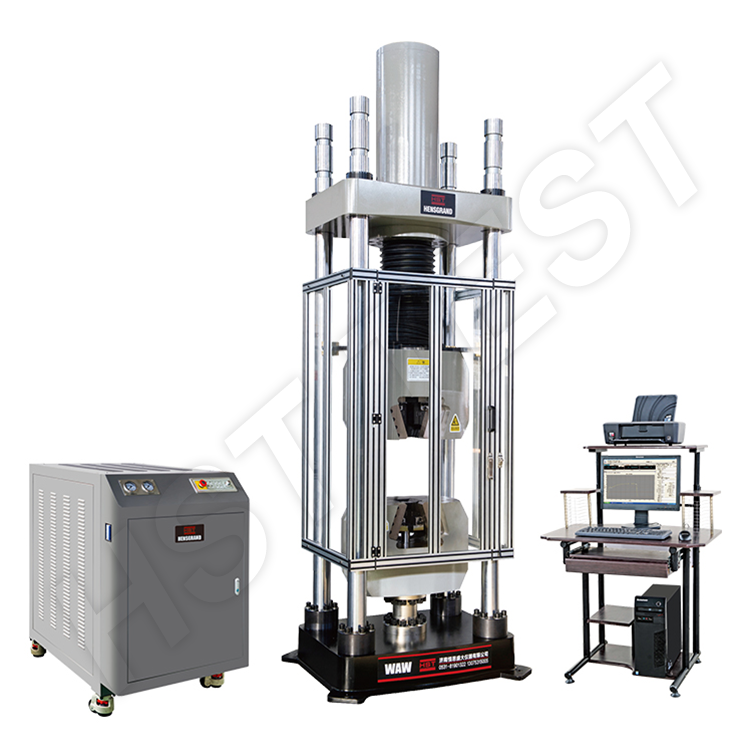

WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)

WAW-F Electro-hydraulic  Servo Strength Testing Machine(200Ton, 300Ton)
WAW-F Electro-hydraulic  Servo Strength Testing Machine(200Ton, 300Ton)
WAW-F Electro-hydraulic  Servo Strength Testing Machine(200Ton, 300Ton)
Application

WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.

Standards

ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.


Specifications

MODEL

WAW-300F

WAW-600F

WAW-1000F

Max. Load capacity(kN)

300

600

1000

Structure

Four column

Accuracy of testing load(%)

±0.5

Accuracy of deformation(%)

±0.5

Test Range

1%-100%

Deformation measurement range

1%-100%

Posion rising speedmm/min

0-250

0-250

0-150

Piston descending speemm/min

0-250

0-250

0-180

Test Force Loading Rate Range

0.02%-2%FS/s

Max. Tensile space(mm)

400

580

700-1000

Max. Compression space(mm)

300

460

520

Actuator stroke(mm)

370

580

650

Max. Loading speed(mm/min)

100

100

75

Distance between columns(mm)

500

490x330

660x400

Clamping method

Hydraulic Automatic Clamp With Wedge Grip

Round insert(mm)

Ф10-32

Ф10-40

Ф1326Ф26-Ф40

Flat insert(mm)

2-25

2-30

2-4040-60

Compression platens(mm)

240*240

240*240

240*240

Dimensions of load frame(mm)

880x630x2980

880x630x2980

980x720x3530

Weight(kg)

1500

3000

5000
