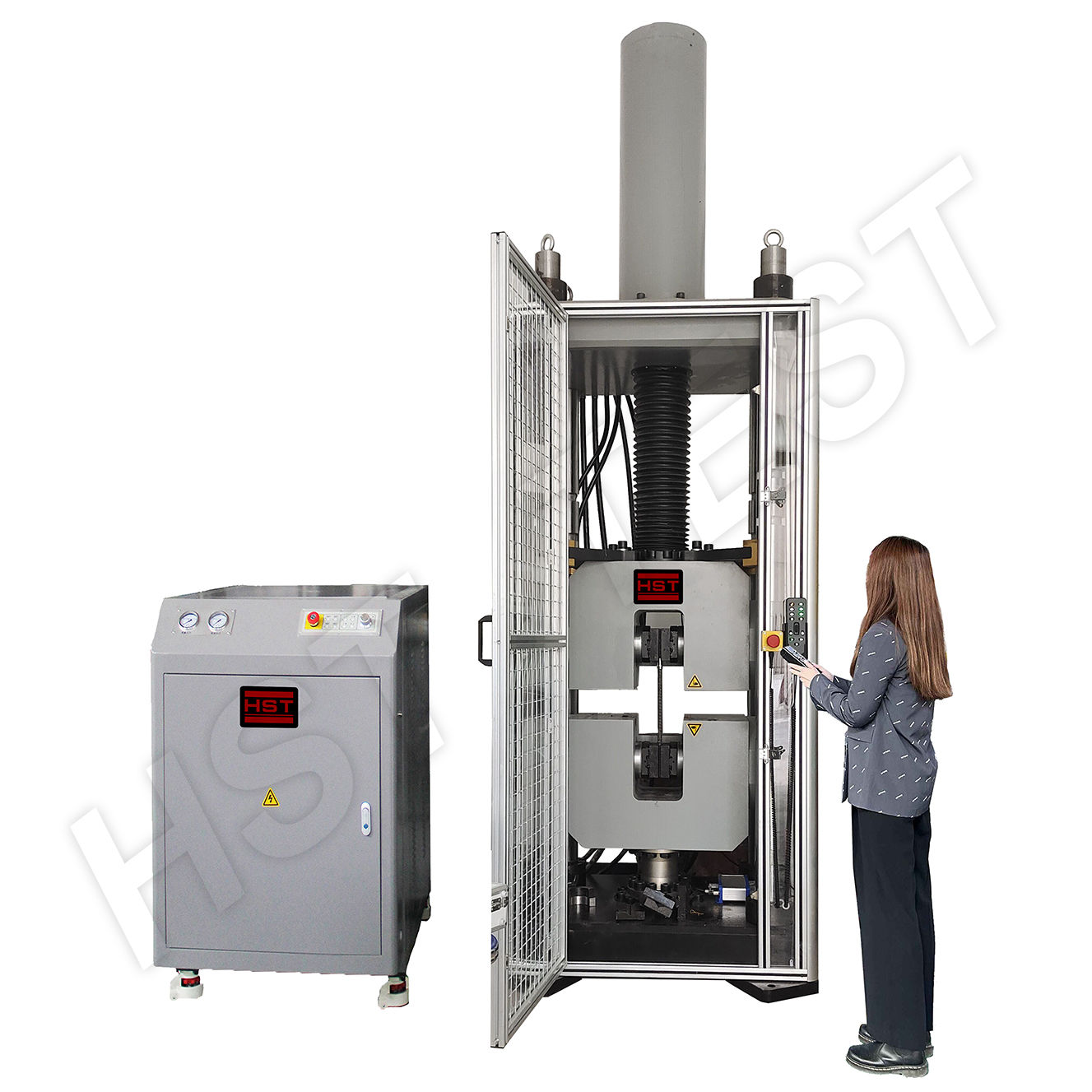

WAW-J Electro-hydraulic Servo Rebar Tension Testing Machine

Application

WAW-J Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.

Standards

ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.

Specifications

Model

HST-WAW300J

HST-WAW600J

HST-WAW1000J

HST-WAW200J

HST-WAW3000J

Max. Load capacity(kN)

300

600

1000

2000

3000

Structure

Four column

Load resolution

Capacity/500, 000 FS

Accuracy of testing load(%)

Classe 0.5 dal 0.5% del fondo scala ISO-7500 ±0.5

Overload protection

130Overload protection (no deformation, no mechanical damage)

Accuracy of deformation(%)

±0.5

Test Range

1%-100%

Deformation measurement range

1%-100%

Resolution of displacement(mm)

0.01

Posion rising speedmm/min

0-200

0-200

0-200

0-100

0-100

Test Force Loading Rate Range

0.02%-2%FS/s

Max. Tensile space(mm)

700

700

750

830

850

Max. Compression space(mm)

550

550

600

680

650

Actuator stroke(mm)

650

650

700

750

650

Distance between columns(mm)

580

580

680

780

840

Clamping method

Hydraulic Automatic Clamp With side action grip

Round insert(mm)

Ф13-Ф26;

Ф26-Ф40

Ф13-Ф26;

Ф26-Ф40

Ф13-Ф26;

Ф26-Ф45

Ф15-Ф40;

Ф40-Ф70

Ф15-Ф30;

Ф30-Ф50; Ф50-Ф80

Flat insert(mm)

0-15, 15-30

15-30

0-15, 15-30

15-30

0-20, 20-40

10-40;40-70

10-40;40-80

40-70

Compression platens(mm)

Ф160

Power supply

3-phase-380V-50Hz
