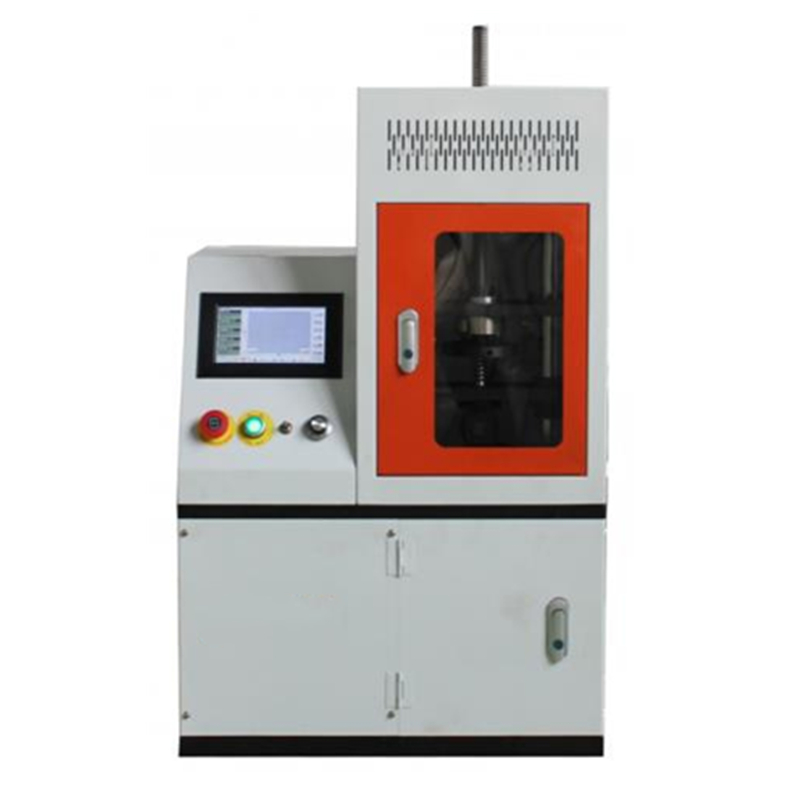

HTPL-T Spring Fatigue Testing Machine(100-2000N)
Application:
This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers, elastic components and other components.
Main parameters:
|
Model |
HTPL- 100T |
HHTPL- 200T |
HTPL- 500T |
HTPL- 1000T |
HTPL- 2000T |
|
Max. Load(N) |
100 |
200 |
500 |
1000 |
2000 |
|
Test station |
Single（Standard） or multiple springs（Optional） |
||||
|
Vertical maximum space(mm) |
200(Customizable) |
||||
|
Transverse maximum space(mm) |
160(Customizable) |
||||
|
Maximum diameter of specimen(mm) |
100(Customizable) |
||||
|
Test machine amplitude(mm) |
±45 |
||||
|
Frequency range (adjustable)（Hz） |
0.1-5 |
||||
|
Counting stop accuracy（Hz） |
1000 |
||||
|
Power |
AC 22V±10% 50Hz |
||||
