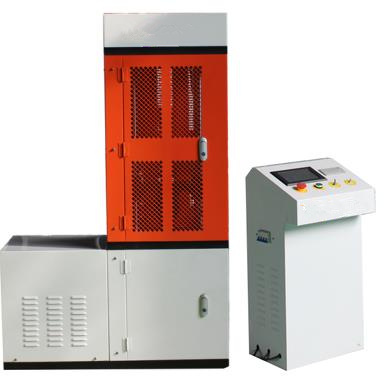

HTPL-5T 5000N Various Spiral Cylindrical Spring Fatigue Testing Machine
Application:
This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers, elastic components and other components.
Model
HTPL-5000T
Max. Load(N)
5000
Test station
Single（Standard） or multiple springs（Optional）
Vertical maximum space(mm)
300(Customizable)
Transverse maximum space(mm)
200(Customizable)
Maximum diameter of specimen(mm)
100(Customizable)
Test machine amplitude(mm)
±50
Frequency range (adjustable)（Hz）
0.1-5
Counting stop accuracy（Hz）
1000
Power
AC 380V±10%
Main parameters:
