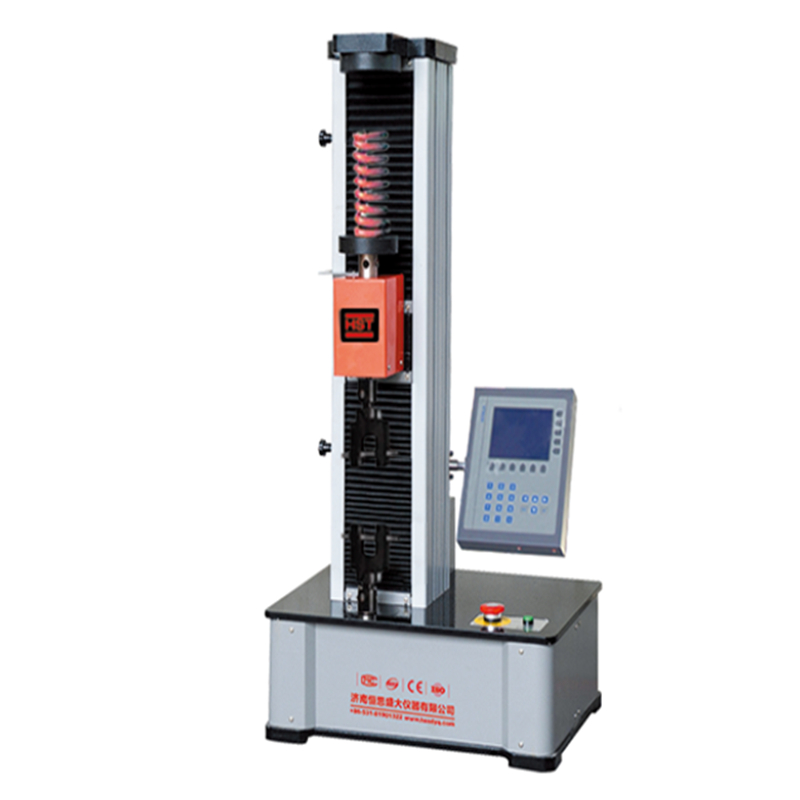

TLS Series Single Column Digital Display Spring Tensile and Compression Testing Machine

Introduction:

This series adopts the electric loading and deceleration system to reduce the speed and drive the precision ball screw to load, which realizes the digital adjustment of the data acquisition and control process. It can test and analyze the tensile force, pressure, displacement and stiffness of precision springs such as tension springs, compression springs, disc springs, tower springs, leaf springs, circlips, leaf springs, composite springs, gas springs, mold springs, and special-shaped springs.

The machine has no pollution, low noise, high efficiency, and has a wide range of speed regulation, which fully meets the requirements of relevant national and international standards.

The machine is widely used in aerospace, machinery manufacturing, spring production enterprises, home appliances and other industries for spring inspection and analysis. It is an ideal test equipment for research institutes, universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.

Parameter:

Model	TLS-005	TLS-01	TLS-02	TLS-05	TLS-1	TLS-2	TLS-3	TLS-5
Max.Testing force （N)	50	100	200	500	1000	2000	3000	5000
Main frame structure	Single column, double testing space（Upper compression，down tensile）
Control type	Manual Control/Computer control
Accuracy	Class 1
Testing range (F·S)	2%～100%F·S
Test force accuracy	≤±1%%
Power	AC220V±10%，50Hz
Dimension	550×400×1600mm
Weight	About 100kg
