Application:

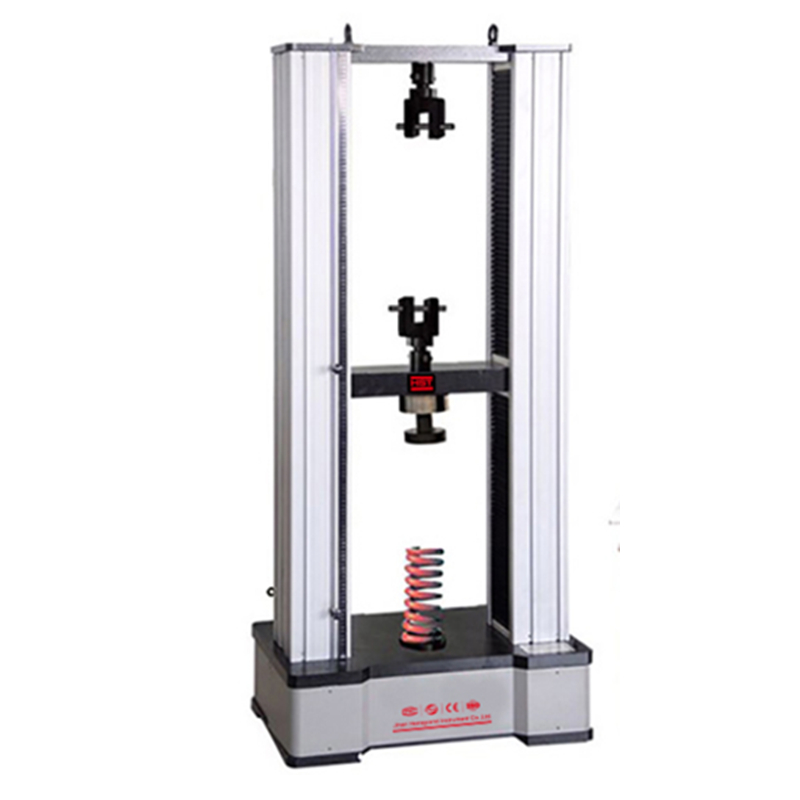

This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
Parameter:
Model |
HST -TLS10D |
HST -TLS20D |
HST- TLS-50D |
HST- TLS-100D |
Max. Testing force |
10KN |
20KN |
50kN |
100kN |
Control type |
Digital display |
|||
Accuracy |
0.5 class |
|||
Testing range |
2%~100%F·S |
|||
Relative error of test force indication |
≤±1% |
|||
Relative error of displacement indication |
≤±1% |
|||
Displacement display resolution |
0.01mm |
|||
Deformation indication error |
≤±(50+0.15L)um |
|||
Speed range |
0.05-500 mm/min |
|||
Tensile and compression space |
700mm |
|||
Diameter of compression plate |
100mm |
|||
Power |
AC220V±10%,50Hz |
