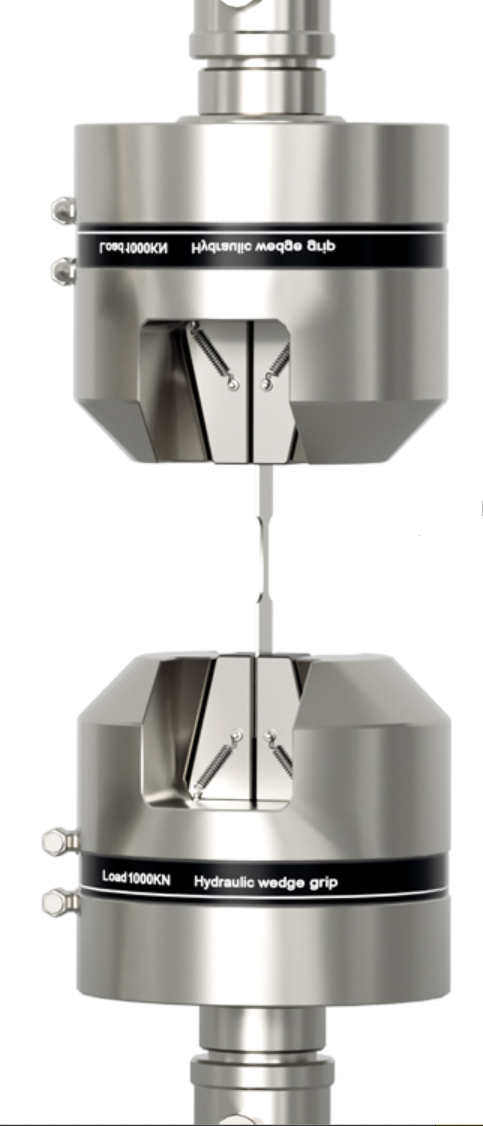

HK-3H Side Loading Hydraulic Wedge Grips (static and fatigue test) 25KN(21MPa) 100KN(21MPa) 250KN(21MPa)
HK-3H Side Loading Hydraulic Wedge Grips (static and fatigue test) 25KN(21MPa) 100KN(21MPa) 250KN(21MPa)
Standards:
Request A Quote Files Download
| Type | Model | Specification | QTY | Unit |
| Side Loading Hydraulic Wedge Grips (static and fatigue test) | HK-3H-25 | 25KN (21MPa) | 1 | Set |
| Application:Used for metal and non material tensile test. | ||||
| Round Jaw：Φ3.0-9.4mm,8.9-15.2mmmm Flat Jaw：0.00-7.2mm,7.1-14.4mm mm | ||||
| Side Loading Hydraulic Wedge Grips(static and fatigue test) | HK-3H-100 | 100kn (21MPa) | 1 | Set |
| Round Jaw：Φ0.00-7.2mm 7.1-14.4mm Flat Jaw：0.00-7.6mm 7.1-14.2mm ,11.7-19.1mm | ||||
| Side Loading Hydraulic Wedge Grips(static and fatigue test) | HK-3H-250 | 250KN (21MPa) | 1 | Set |
| Application:Suitable for tensile strength testing of metals, composite materials, plates and bars | ||||
| Round Jaw：Φ6.4-15.5mm 15.2-24.4mm 24.1-33.5mm 33.0-42.4mm 41.9-51.3mm Flat Jaw：0.00-10.9mm 10.1-21mm 20.3-31.2mm 30.4-41.4mm 40.6-51.6mm | ||||
| Side Loading Hydraulic Wedge Grips(static and fatigue test) | HK-3H-500/600 | 500KN/600KN (21MPa) | 1 | Set |
| Round Jaw：6.4-15.5mm 15.2-24.4mm 24.1-33.5mm 33.0-42.4mm 41.9-51.3mm Flat Jaw：0.00-10.9mm 10.1-21mm 20.3-31.2mm 30.4-41.4mm 40.6-51.6mm | ||||
| Side Loading Hydraulic Wedge Grips(static and fatigue test) | HK-3H-1000 | 1000KN (21MPa) | 1 | Set |
| Round Jaw：φ6.0-10.0mm 9.9-25.1mm 25.1-44.4mm 44.4-63.0mm Flat Jaw：0.00-23.0mm 23.0-45.0mm 45.0-67.0mm | ||||
