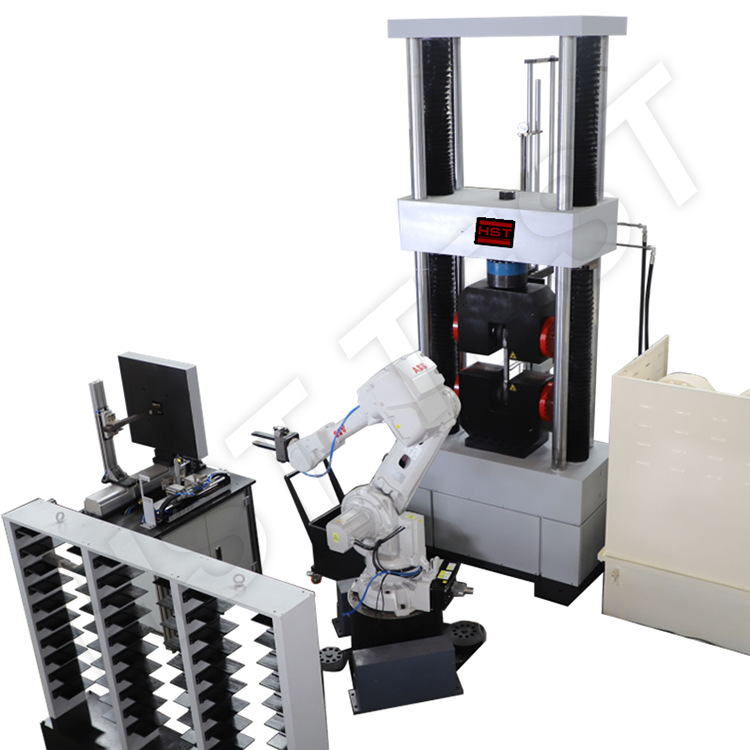

2000 KN Computer Control Robot Full Auto Electronic Tensile Testing Machine
Overview
microcomputer controlled automatic tensile testing machine consists of electronic universal testing machine, double-sided push-pull hydraulic automatic stretching fixture, flat push clamp servo oil source, digital longitudinal automatic extensometer, and extensometer’s program-controlled automatic advance and retreat device, front gantry type three-dimensional automatic loading specimen main robot device, six-side 60-station servo control rotary specimen rack device, specimen automatic centering finishing device, specimen automatic measuring device, follow-up automatic unloading Double robot device, automatic specimen sorting device, piano main console, digital full-closed multi-channel controller, computer and software system, measurement and control system, PLC manual control box, gas island control system, compressed air boost The system consists of a voltage regulation system, an electric drive system, safety protection and automatic shutdown alarm.
The equipment can work continuously for 24 hours, ensuring that the effective working day is more than 350 days and the annual effective working time is more than 8400 hours.
Main Parameters:
|
Main host and controller With horizontal adjustment column, set expansion bolt foot |
|
| Max. load | 2000KN |
| Testing level | 0.5 Class |
| Driving way | Servo control, electric servo, medium control gas island |
| Operation type | Automatic / manual stretching at room temperature |
| Test speed | 0.001-200mm/min stepless setting |
| Speed accuracy | ±0.5% |
| Speed control mode | displacement, load, stress, strain can be arbitrarily selected and switched within the stretching phase. |
| Full load speed and speed accuracy | 200mm/min, ±0.5% |
| Power supply | Three-phase 10kW |
| Load sensor | |
| Measuring accuracy level | 0.5 class |
| Load resolution | 500000 yards (equivalent to 1.2N) |
| Stress control accuracy | ±0.5% |
| Strain control accuracy | ±0.5% |
| Displacement | |
| Measurement range | 0 ~ 550mm |
| Digital longitudinal automatic extensometer | |
| Accuracy level | Exceeds EN10002 level 0.5 standard; |
| Working temperature | 0--50 °C |
| Measurement position | Configuration of rodless two-way cylinder, linear guide, automatic advance and retreat for measurement |
| Supercharger | The main control box of the extensometer has an inflatable protection device to prevent dust from entering |
| Double-sided flat push hydraulic automatic stretching fixture | |
| Double-sided push-pull hydraulic clamp | jaw clamping range: 0-60mm (can hold specimen with certain deflection) |
| Max. Clamping force | 2000kN |
| Specimen double section size automatic measurement system | |
| Specimen type | Rectangular shape specimen |
| Measurement accuracy | ±0.5% |
| Power supply | Single phase 220V±10%, 50Hz, 500W |
