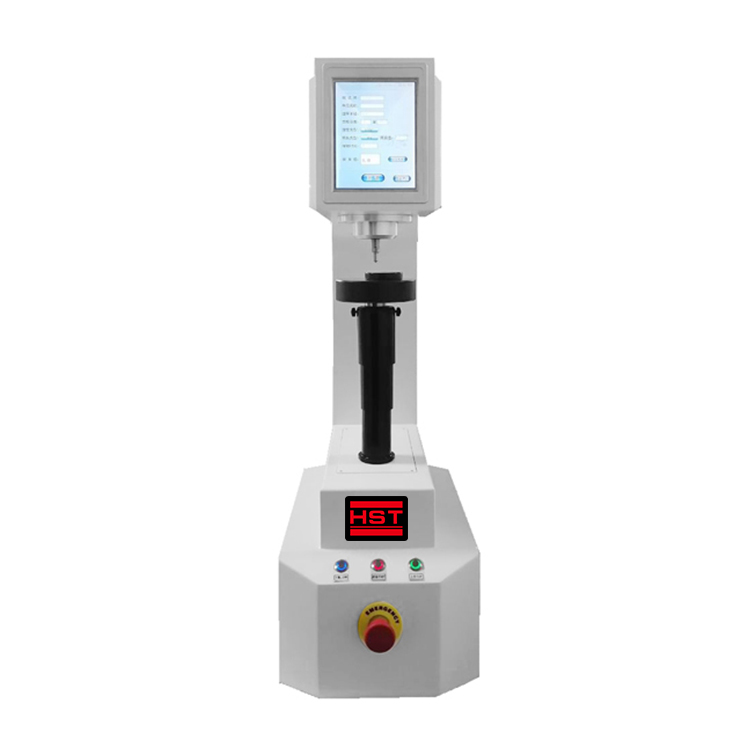

Product model | HRSS-150/45T |
Dwell time | 0-99s |
Initial load of Rockwell | 10kgf (98N) |
Total load of Rockwell | 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) |
Initial load of Superficial Rockwell | 3kgf (29.4N) |
Total load of Superficial Rockwell | 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N) |
Load value error | <0.5% |
Hardness testing range | HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125 |
Testing rage of Superficial Rockwell |
HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45T:1-72 |
Max Height of Sample | 220mm |
Distance of Indenter to outer wall | 200mm |
Hardness reading | LCD display |
Data output | USB flash disk |
Power supply | AC220V,50/60HZ |
Size | 560×220×750mm |
Net weight | About 70kg |
