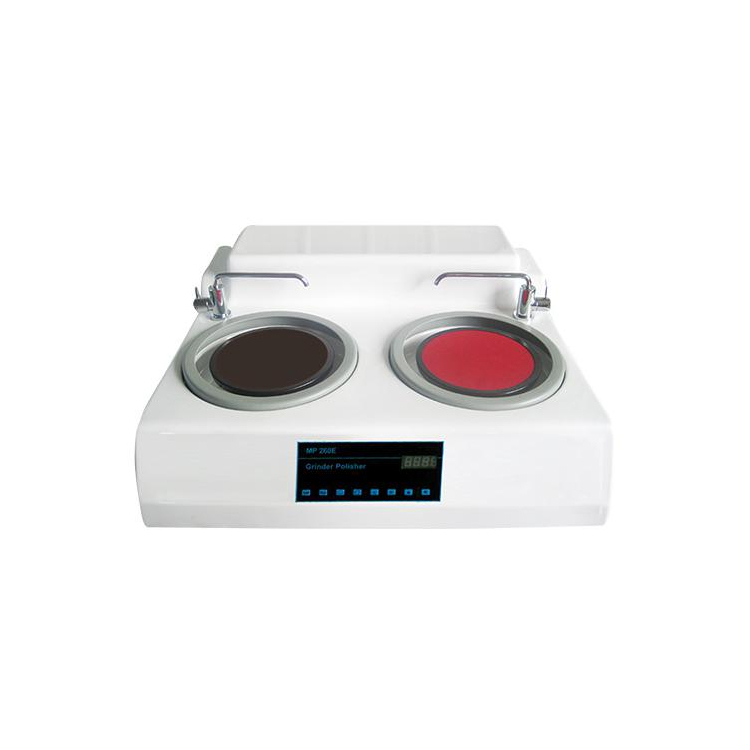

MOPAO 260E Metallographic Grinding and Polishing Machine
1. Application and Feature of Grinding-Polishing Machine
The grinding-polishing machine is a double-disc desktop, applicable to rough grinding, accurate grinding and polishing of metallographic sample. The machine has microprocessor control system, with a speed of 50-600rpm, thus widening its application. The machine is an indispensable equipment in making the metallographic sample. The machine has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges etc..
2. Main Specifications:
| Model | MOPAO-260E |
| Grinding/Polishing Disc Diameter | 203mm /250mm |
| Rotate speed |
50-600rpm (stepless speed） 150rpm 300rpm( two steps stationary speed) |
| Grinding/polishing disc direction | Clockwise or anticlockwise |
| Grinding/Polishing disc quantity | 2 |
| Motor | 550W |
| Operating voltage | AC 220V 50HZ |
| Dimension | 725×710×310mm |
| Weight | 50kg |
