ASTM E466 ISO 1099 GB/T 3075 Which Electrodynamic Fatigue Testing Machine Delivers Superior Durability & Precision? – HST-EFT50A 2026 Complete Buyer’s Guide

Abstract

The selection of the ideal electrodynamic Fatigue Testing Machine depends heavily on your test force demand, frequency range, specimen type, accuracy requirements, and long-term operational stability. This 2026 buyer’s guide focuses on theHST-EFT50A electrodynamic fatigue testing machine, analyzing its performance, configuration, total cost of ownership, and global service system to help material research labs, automotive factories, aerospace enterprises, and quality inspection institutions choose a high-value fatigue test solution.

Key Takeaways

· The fatigue testing machine is matched according to test force, frequency, specimen size, and test standards.

· HST-EFT50A providesstatic Class 0.5 / dynamic Class 1 high precision for laboratory certification and industrial fatigue testing.

· Focus on total cost of ownership, not just upfront price: including maintenance, consumables, and service.

· Local after-sales support and fast spare parts supply effectively reduce downtime.

· Stable servo linear actuator and rigid two-column frame ensure long-term durability under high-frequency dynamic loading.

· Intelligent multi-waveform software supports complex fatigue, static tension, compression, bending tests in one machine.



Understanding Fatigue Testing Machine Ecosystem

Like a universal testing machine, an electrodynamic fatigue testing machine also has two core parts: thehigh-stiffness main frame and theprecision dynamic measurement & control system.HST-EFT50A is an integrated high-performance solution, not just a single component. It combines a robust two-column platform frame, servo linear actuator, USA high-precision Load Cell, and intelligent dynamic testing software to ensure stable, accurate, and repeatable fatigue and static test results.

Two Market Types: Premium Brands vs. High-Value Champions

Feature	Premium European/US Brands	HST High-Value Series (EFT50A)
Accuracy Level	Static ±0.5%, Dynamic ±1%	Same high precision
Configuration	Full imported, high cost	Imported key parts + stable integration
Price	Very high investment	Affordable, cost-effective
After-Sales	Slow response, high cost	Global network, fast local support
Application	High-end research labs	Material research, automotive, aerospace, quality control

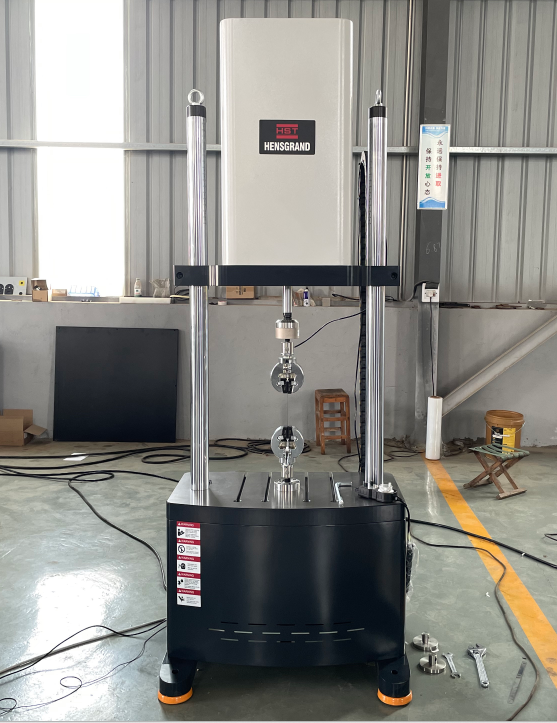

HST-EFT50A: High-Value Champion in 50kN Electrodynamic Fatigue Testing Machines

In material fatigue performance testing and quality control, a reliable, high-durability electrodynamic fatigue testing machine is critical for capturing fatigue life, fracture toughness, and dynamic mechanical properties. Built byHST GROUP (Jinan Hensgrand Instrument Co., Ltd.), a leading global provider of material testing solutions with over 20 years of expertise, the HST-EFT50A sets a new benchmark for 50kN-class electrodynamic fatigue testing systems.

Application & Materials

· Metal materials: steel, aluminum alloy, titanium alloy, bars, plates, profiles

· Composite & rubber: rubber parts, composite components

· Test items: high/low-frequency fatigue, fracture toughness, static tension, compression, bending

· Application scenarios: material R&D, automotive parts, aerospace components, quality inspection

Fully compliant with global testing standards:ASTM E466, ISO 1099, GB/T 3075, GB/T 15248, GB/T 2611, GB/T 16825.1, JB9397

Mechanical Structure & Stability Advantage

· Two-column platform type frame with 70mm largediameter hard chrome plated columns

· Ultrahigh rigidity:3×10⁸ N/m, no deformation under dynamic load

· Crossbeam: electric lifting + manual locking, fast and stable positioning

· Standard Tslot worktable for quick specimen installation

· USA highprecision spoketype load cell for stable force detection

· Servo linear actuator: direct electromagnetic drive, zero wear, long service life

· Topmounted electric control system for compact layout and easy maintenance

This robust structure ensures stable performance even under longhour highfrequency fatigue testing, minimizing deviation and ensuring repeatable results.

High-Precision Performance Specifications

· Max. test force:±50000N (50kN)

· Static accuracy:±0.5%; Dynamic accuracy:±1%

· Force measuring range: Dynamic 1%–100%FS; Static 0.5%–100%FS

· Force resolution:1/500000

· Displacement range:150mm (±75mm); Resolution:0.001mm

· Displacement accuracy: ±0.5%FS (from 1% FS)

· Deformation accuracy: ±0.5% (from 2% FS)

· Test frequency:0.01–10Hz

· Effective column distance: 500mm

· Main waveforms: sine, pulse, square, sawtooth, random, composite waves

Premium Dynamic Configuration

· USA highprecision spoketype load cell

· Servo linear actuator (max speed 2m/s)

· HSTEDC highspeed digital controller (closedloop up to 5kHz)

· Advantech industrial computer + HP laser printer

· Intelligent modular electrical control system

· Standard compression fixture (expandable for tension, bending, shear)

Intelligent Test System & Software Features

· Fully digital closedloop control: force, displacement, deformation

· Support multiple waveforms and custom test spectra

· Realtime test curve: forcetime, displacementtime, fatigue life curve

· Auto calculation: fatigue life, fracture toughness, static strength parameters

· Multilanguage interface, compatible with Win7/Win10

· Customizable test reports (Excel/Word) with company logo

· Overload, overcurrent, overtravel protection

· Multilevel user authority management for system security

The complete test flow — select test → input specimen info → start test → generate report — simplifies operation and improves efficiency for both new and experienced users.

Beyond the Product: Critical Buying Factors (2026)

After-Sales Support (Most Important)

· One-year warranty for the whole machine

· Professional online after-sales & remote guidance for installation, operation

· Designed and manufactured exclusively in HST’s own factory

· Global service network with fast response

Total Cost of Ownership (TCO)

· Lower maintenance cost (zerowear linear actuator)

· Imported key parts reduce failure rate

· Long service life reduces replacement cost

· Allinone machine reduces extra equipment investment

Certification & Standards

· ISO 9001, CE certified

· Comply with ASTM E466, ISO 1099, GB/T 3075, GB/T 15248 and more

· Suitable for third-party certification and inspection

Model Range & Expansion

HST provides customized fatigue testing solutions with different force levels and frequencies to meet laboratory, industrial, and aerospace fatigue testing demands.

Making a Decision That Lasts

The HST-EFT50A electrodynamic fatigue testing machine is not only a high-precision testing machine but also a long-term partner for your material research and quality control. It balances dynamic performance, structural stability, total cost, and professional service, making it the best choice for50kN fatigue & static testing in 2026.

Whether for material fatigue research, production quality control, or project acceptance, the HST-EFT50A delivers professional, stable, and cost-effective solutions for dynamic and static material testing.

Frequently Asked Questions (FAQ)

1. Why choose the HST-EFT50A fatigue testing machine?

It provides static Class 0.5 / dynamic Class 1 high precision, zerowear linear actuator, ultrarigid two-column frame, multi-waveform intelligent software, and global after-sales support. Ideal for both laboratory research and industrial fatigue testing.

2. Why choose HST GROUP as your supplier?

HST has 20+ years of experience in material testing machines, with ISO 9001 and CE certification. We have a global distributor network and professional R&D and production team. We are not just a supplier, but a long-term partner.

3. What is the warranty period?

The whole machine has a12-month warranty. The load cell, linear actuator, and control system are covered under warranty.

4. Do you provide installation, training and after-sales service?

Yes. We provide remote video installation guidance and online operation training.

5. Can it meet international and domestic test standards?

Yes. The EFT50A fully meetsASTM E466, ISO 1099, GB/T 3075 and other standards and can be used for third-party testing, factory inspection, and scientific research.



HST GROUP – Focus on Material Test.Kindly contact HST Group via WhatsApp at+86 15910081986.
