Abstract
The selection of the ideal torsion testing machine depends heavily on your torque range, specimen type, accuracy requirements, applicable standards, and long-term operational stability. This 2026 buyer’s guide focuses on the HST NDW computer control Torsion Testing Machine, analyzing its performance, configuration, total cost of ownership, and global service system to help biomedical labs, automotive factories, aerospace enterprises, and metal wire producers choose a high-value torsion test solution.
Key Takeaways
· The torsion testing machine is matched according to torque demand, specimen size, accuracy level and test standards.
· HST NDW series provides Class 0.5 high precision suitable for laboratory certification and industrial quality control.
· Focus on total cost of ownership, not just upfront price: including maintenance, consumables, and service.
· Local after-sales support and fast spare parts supply effectively reduce downtime.
· NDW series covers 200Nm–5000Nm, providing flexible choices for different torsion test scenarios.
· Dual linear slide structure and intelligent software greatly improve test stability and data repeatability.
Understanding Torsion Testing Machine Ecosystem
Like a Universal Testing Machine, a torsion testing machine also has two core parts: the high-torsional-stiffness main frame and the precision torque measurement & control system.HST NDW is an integrated high-performance solution, not just a single component. It combines a robust horizontal dual linear slide frame, imported high-precision torque sensor, stable servo drive system, and professional torsion test software to ensure stable, accurate, and reliable torsion test results.
Two Market Types: Premium Brands vs. High-Value Champions
|
Feature |
Premium European/US Brands |
HST High-Value Series (NDW) |
|
Accuracy Level |
Class 0.5 / Class 1 |
Class 0.5 same high precision |
|
Configuration |
Full imported, high cost |
Imported key parts + stable integration |
|
Price |
Very high investment |
Affordable, cost-effective |
|
After-Sales |
Slow response, high cost |
Global network, fast local support |
|
Application |
High-end labs, scientific research |
Labs, factories, aerospace, automotive, wire production |

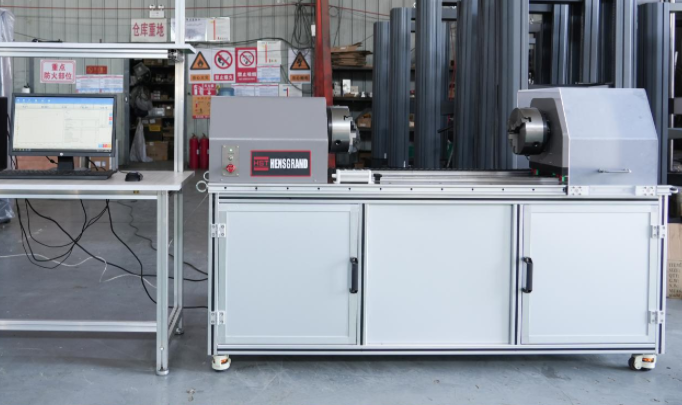

HST NDW: High-Value Champion in Computer Control Torsion Testing Machines
In material performance testing and quality control, a reliable, high-precision torsion testing machine is critical for measuring torsional strength, stiffness and stress-strain properties of materials and products. Built by HST GROUP (Jinan Hensgrand Instrument Co., Ltd.), a leading global provider of material testing solutions with over 20 years of expertise, the HST NDW series sets a new benchmark for computer control torsion testing systems.
Application & Materials
· Metal materials: steel wire, profiles, bars, fasteners
· Biomedical: medical bone screws, spinal implant constructs
· Automotive & aerospace: drill tool bits, transmission components
· General industry: various parts subjected to torsional load
· Test items: torsional strength, torsion angle, shear modulus, torsion fatigue
Fully compliant with global testing standards, its torque system meets or exceedsASTM A938, ISO 7800, ISO 18338, ASTM F543, IEC 888, covering wire torsion, metal torsion, medical device torsion and other test requirements.
Mechanical Structure & Stability Advantage
· Horizontal table type structure with dual linear slide design
· High torsional stiffness, no deformation, ensures coaxial clamping
· USA high-precision double flange torque sensor for stable force detection
· Interlocked chuck guard protects operators during testing
· Three-jaw chuck fixture, two-way clamping for stable specimen fixing
· Movable cross-beam with T-slot, adjustable clamping distance
· AC servo motor + Japan planet-gear speed reducer for stable driving
This robust structure ensures stable performance even under long-hour industrial testing, minimizing deviation and ensuring repeatable results.
High-Precision Control & Performance Specifications
· Torque range: 200Nm–5000Nm (multiple models available)
· Accuracy class: 0.5
· Torque accuracy: ±0.5% of reading
· Torque effective test range: 0.4%–100% FS
· Torque resolution: up to 1/500000 FS
· Torsion angle resolution: 0.002°
· Torsion angle accuracy: ≤±0.5% of indicated value
· Torsion speed: 0.01~1500°/min (customizable)
· Overload protection: standard configuration
· Fully closed-loop control: torque, torsion angle, speed
Premium Drive & Measurement Configuration
· Taiwan TECO AC servo motor & driver
· Japan Beto planet-gear speed reducer
· USA high-precision double flange torque sensor
· EDCI 50 external measurement and control system
· Linear bearing (bearing steel) for smooth movement
Intelligent Test System & Software Features
· Full digital adjustment for torque, torsion angle zero-point and gain
· Real-time test curve: torque-torsion angle, torque-time
· Auto calculation: torsional strength, shear modulus, torsion angle
· Multi-language: English, Russian, Turkish, Spanish, etc.
· Customizable test reports (Excel/Word) with company logo
· Multi-level user authority management for system security
· Hand-held control box for convenient operation
The complete test flow — select test → input specimen info → start test → generate report — simplifies operation and improves efficiency for both new and experienced users.
Beyond the Product: Critical Buying Factors (2026)
After-Sales Support (Most Important)
· One-year warranty for the whole machine
· Professional online after-sales & remote guidance for installation, operation
· Designed and manufactured exclusively in HST’s own factory
· Global service network with 6 international offices and 100+ distributors
Total Cost of Ownership (TCO)
· Lower maintenance cost
· High-efficiency servo system saves energy
· Imported key parts reduce failure rate
· Long service life reduces replacement cost
· Complete standard configuration reduces later procurement cost
Certification & Standards
· ISO 9001, CE certified
· Comply with ASTM A938, ISO 7800, ISO 18338, ASTM F543, IEC 888
· Suitable for third-party certification and inspection
Model Range (Full NDW Series)
In addition to common models, HST offers a complete NDW series with torque capacities from 200Nm up to 5000Nm, providing ideal solutions for laboratories, automotive factories, aerospace companies, metal wire producers and quality inspection institutions worldwide.
Making a Decision That Lasts
The HST NDW computer control torsion testing machine is not only a high-precision testing machine but also a long-term partner for your quality control. It balances performance, stability, cost, and service, making it the best choice for torsion material testing in 2026.
Whether for material research, production quality control, or project acceptance, the HST NDW series torsion testing machines deliver professional, stable and cost-effective solutions for material testing.
Frequently Asked Questions (FAQ)
1. Why choose the HST NDW torsion testing machine?
It provides Class 0.5 high precision, imported torque sensor, dual linear slide rigid frame, fully automatic software, and global after-sales support. It offers an ideal balance of accuracy, stability, and cost, suitable for both laboratory certification and industrial mass testing.
2. Why choose HST GROUP as your supplier?
HST has 20+ years of experience in material testing machines, with ISO 9001 and CE certification. We have 6 international offices, a global distributor network, and a professional R&D and production team. We are not just a supplier, but a long-term partner.
3. What is the warranty period?
The whole machine has a 12-month warranty. The torque sensor, servo motor, and controller are covered under warranty. Wear parts are not included but can be supplied at factory cost.
4. How about packaging and transportation?
The machine is packed in standard export plywood cases with moisture-proof and shockproof treatment. We cooperate with reliable freight forwarders to ensure safe transportation by sea, land, or air.
5. Do you provide installation, training and after-sales service?
Yes. We can provide remote video installation guidance and online operation training.
6. Can the machine meet international certification standards?
Yes. The NDW series fully meets ASTM A938, ISO 7800, ISO 18338 and other standards and can be used for third-party testing, factory inspection, and project acceptance.
