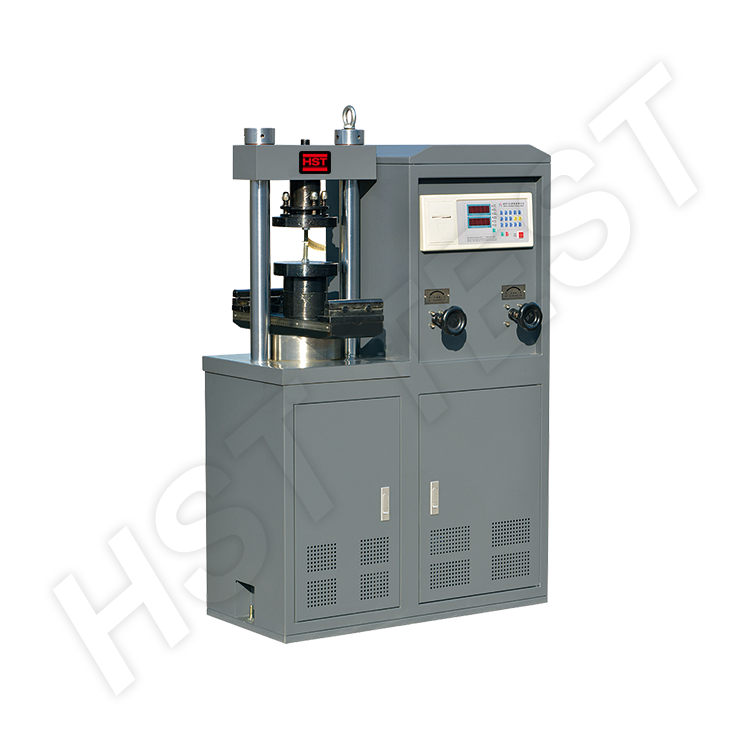

YES-300 300kN Digital Display Compression Testing Machine
Main Application YES-300 digital display compression testing machine mainly used for concrete rupturestrengthtesting,cement, plastic sand,and red brick building materials compression resist testing. W
Standards:
Request A Quote Files Download
Main Application
Digital display Compression Testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Technical Parameters
Digital display Compression Testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Technical Parameters
| Model | YES-100 | YES-200 | YES-300 |
| Max. Load | 100kN | 200kN | 300kN |
| Range of test force | 4-100kN | 8-200kN | 12-300kN |
| Test space adjusting mode | Block adjustment test space | ||
| Control mode | Manual control loading process | ||
| Value repeatability error | ≤±1% | ||
| Loading speed | 0.3KN/S~10KN/S | ||
| Loading speed error | ±5% | ||
| Piston stroke | 60mm | ||
| Max compression space between two plates | 180 | ||
| Working table size | 150mm×200mm | ||
| Dimension | 1200x550x1400mm | ||
