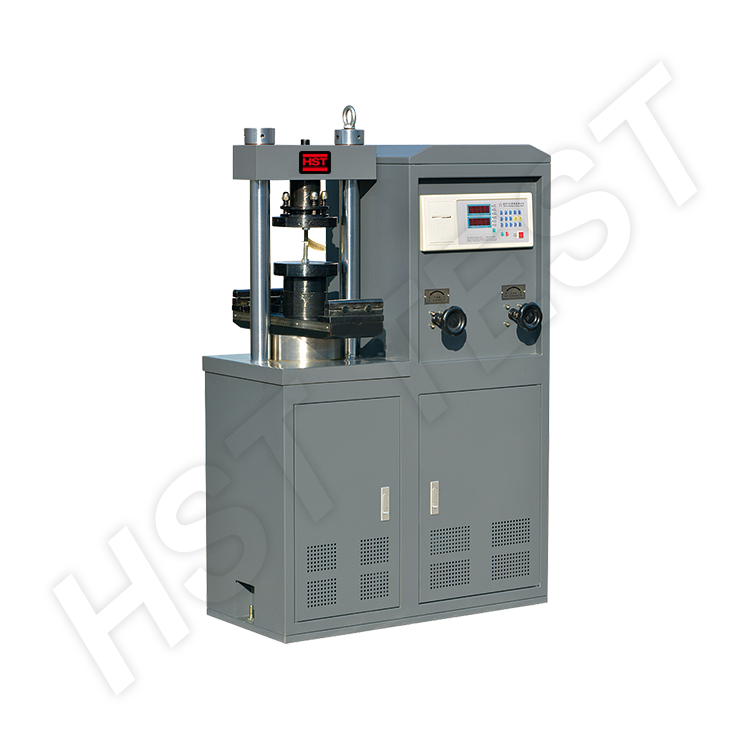

YES-300F 300kN Digital Display Cement Compression and Flexural strength Tester
YES-300F 300kN Digital Display Cement Compression and Flexural strength Tester
Main Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Technical Parameters
|
Model |
YES-300F |
|
Max. Load(Compression) |
300kN |
|
Max. Load(Flexural) |
10kN |
|
Test space adjusting mode |
Block adjustment test space |
|
Control mode |
Manual control loading process |
|
Value repeatability error |
≤±1% |
|
Loading speed |
0.3KN/S~10KN/S |
|
Loading speed error |
±5% |
|
Piston stroke |
60mm |
|
Max compression space between two plates |
180 |
|
Working table size |
150mm×200mm |
|
Dimension |
1200x550x1400mm |
|
Power supply |
Main unitAC 380V±10%，control system 220V±10%,0.75Kw |
|
Fuse |
1A |
