Remarks:
With different probe: can measure the thickness of non-magnetic coating layers covered on magnetic substrate.
Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel) It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
Main feature:

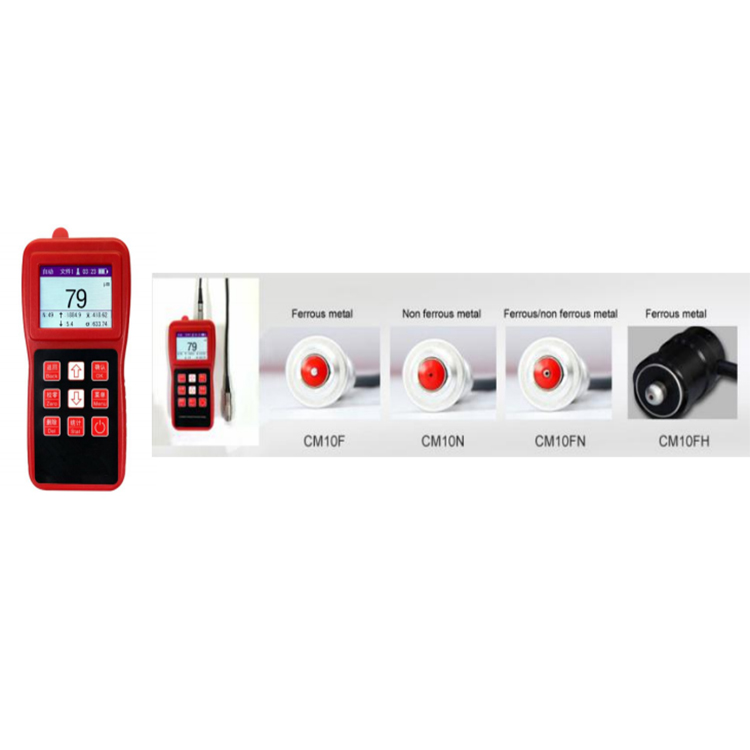

*Various probes optional, probe auto matching.
*Durable ruby probe, more wear and precise.
*Full metal shell design, sturdy, portable, high reliability.
*Alarm function when overrun the settable limiting range.
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.
*Large storage, easy to delete single or multiple saved values..
*PC software optional, convenient the data transmission, analysis, printing etc.
Technical Specification
Measuring range
|
0- 1250μm, depends on probes, MAX 10mm for the probe F10.
|
Working principle
|
Magnetic & Eddy
|
Substrate
|
FE / NFE base
|
Resolution
|
0. 1 μm
|
Display
|
128x64 LCD with backlight
|
Accuracy
|
±2%H+ 1um Note: H is thickness reading
|
Memory
|
5 files x 100 values
|
Unit switch
|
Metric (μm) Imperial (mil)
|
Working temperature
|
Operation Temp : - 10~50°C Storage Temp :-30~70°C
|
Power
|
AA battery 2pcs
|
Weight
|
340g
|
