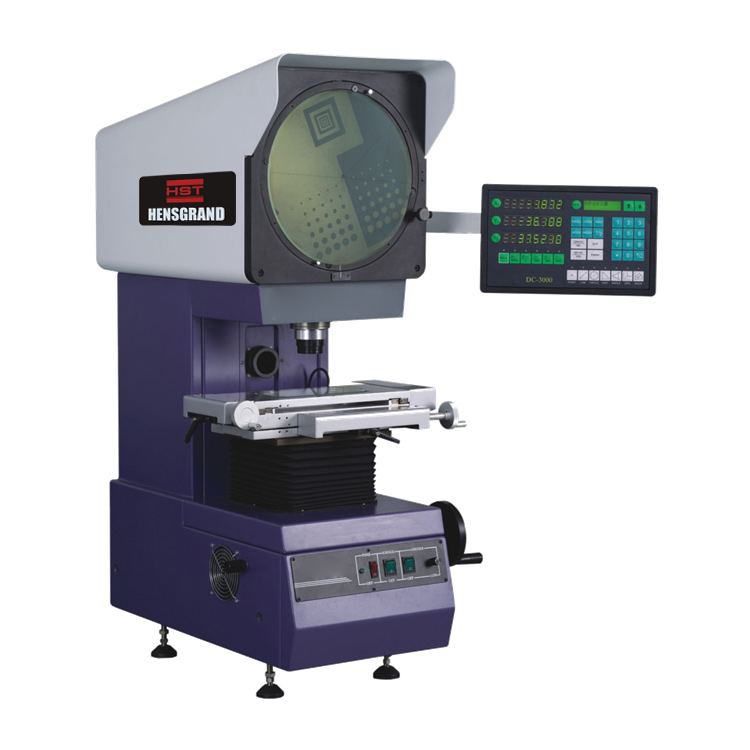

Vertical Profile Projector HST CPJ-3000 Series
Product name：Vertical Profile Projector HST CPJ-3000 Series
Product categories：Profile Projector
Abstract：
● Powerful Bi-axial fan cooling system，highly increase life span ● Powerful DRO DC-3000，realized fast and accurate 2D Measurement ● With standard 10X objective, optional 20X，50X，100X objective，rotary table, foot switch ,clamp, etc
I. Usage
HST CPJ-3000 series is a high cost performance, high efficiency, universal type vertical profile projector developed by HST Group.
It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape，can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on, widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.
II. Features
It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.08%.Coordinate measurement deviation is ≤(3.0 + L/200) um, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.
P.S The Digital Readout has a function of interchange between mm and inches
|
Model |
HST CPJ-3015 |
HST CPJ-3020 |
HST CPJ-3025 |
|
|
Worktable |
Metal Table Size(mm) |
340*152 |
404*228 |
450*280 |
|
Glass Table Size(mm) |
196*96 |
260 *160 |
306 *196 |
|
|
X Stroke(mm) |
150 |
200 |
250 |
|
|
Y Stroke(mm) |
50 |
100 |
150 |
|
|
Z Stroke(mm) |
90 focus |
90 focus |
90 focus |
|
|
Accuracy※(µm) |
3.0+L/200 |
3.0+L/200 |
3.0+L/200 |
|
|
Scale Resolution(X, Y):0.001/0.0005mm |
||||
|
Projector screen |
Screen size (mm):Ø 312, Used range>Ø 300 |
|||
|
Screen Rotary Range: 0°~360° |
||||
|
Resolution(X, Y):1´ or 0.01° |
||||
|
Lens |
Lens : 10X(standard) 20X(option) 50X(option) 100X(option) |
|||
|
Object View(mm): Ø30 Ø15 Ø6 Ø3 |
||||
|
Working Distance(mm): 77.7 44.3 38.4 25.3 |
||||
|
Data Processor |
DC-3000, can be used to gather the data and measure the point, line, circle, angle and distance. |
|||
|
Illumination |
The illumination of transmission and reflection: 24V/150W-halogen lamp. |
|||
|
Power |
110V/220V(AC), 50/60HZ, Total power:400W |
|||
|
Cooling |
Forced cooling |
|||
|
Optional |
Mini-printer, Edge detector, M2D software and so on |
|||
※ All data is tested according to Standard JJF1093-2002
Specifications subject to change without notice
