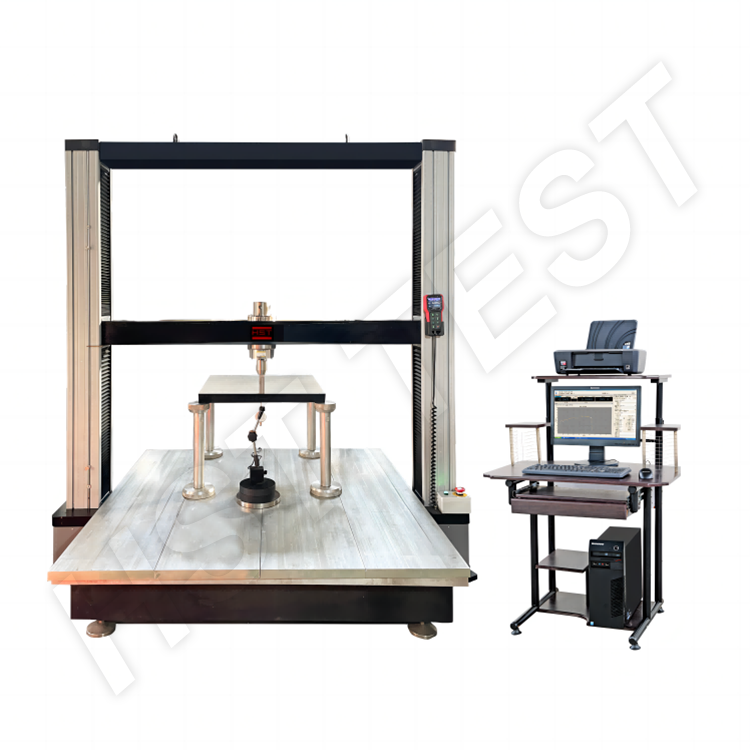

BSEN 12825 Chipboard Raised Floor Compression Testing Machine
Application:
Used for BSEN 12825 Raised access floors compression test.The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Parameters:
|
Model |
10KN/20KN/50KN/100KN |
|
Columns |
Double Column |
|
Test Grade |
0.5 |
|
Testing Force Accuracy |
±0.5% |
|
Testing Force Range |
0.4%-100%FS |
|
Displacement Accuracy |
±0.5% |
|
Displacement Resolution |
0.5 |
|
Speed Range (mm/min) |
0.01-1000 |
|
Control Accuracy |
±0.5% |
|
Test width (mm) |
1200 |
|
Lower compression Platen |
1190*1190mm （customized） |
|
Position limit switch |
Upper and lower lights |
|
Power Supply |
AC220V±10%, 50Hz/60Hz |
