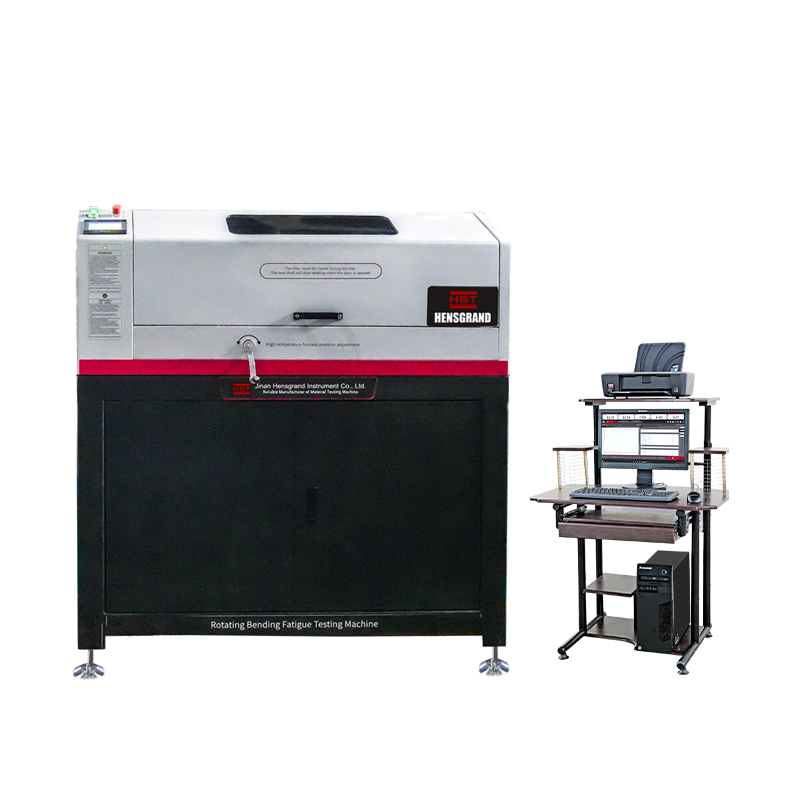

HST BF-102C Rotating Bending Fatigue Testing Machine HST BF-102C
1. Function
Rotary Bending fatigue testing machine, with the following functions:
l Meet the requirements of four-point tensile test of cylindrical specimen of GB/T 4337-2015, and carry out the test;
l Can be tested at high temperature or normal temperature;
l Servo motor drive, speed stepless adjustment;
l Counting function, accurately record the number of sample rotation;
l Servo motor loading, force sensor to measure the loading force (moment);
l The test speed can be changed during operation;
l The loading force (bending moment) can be changed during operation;
l Automatically shut down after sample failure and save data;
l Calculate and process data, generate and print test reports.
2. Applicable standards:
(1)GB/T 4337-2015 "Rotating Bending Method for Fatigue test of Metal Materials"
(2)GB/T 2611-2007 "General Technical Requirements for Testing Machines"
3. Main technical parameter
|
MODEL |
HST BF-102C |
|
|
Maximum speed |
6000r/min |
|
|
Loading torque |
100Nm |
|
|
Loading lever |
100mm |
|
|
Loading force |
100N ~ 1000N |
|
|
Loading force resolution |
0.05N |
|
|
Relative error of loading force |
≤±0.5% |
|
|
Force value variation during operation |
≤±5% |
|
|
Power |
Main rotary motor |
945W |
|
Loading motor |
100W×2 |
|
|
Voltage and frequency |
220VAC,50Hz,Single Phase |
|
|
Main machine dimensions (width * depth * height) |
800* 600* 1260mm |
|
