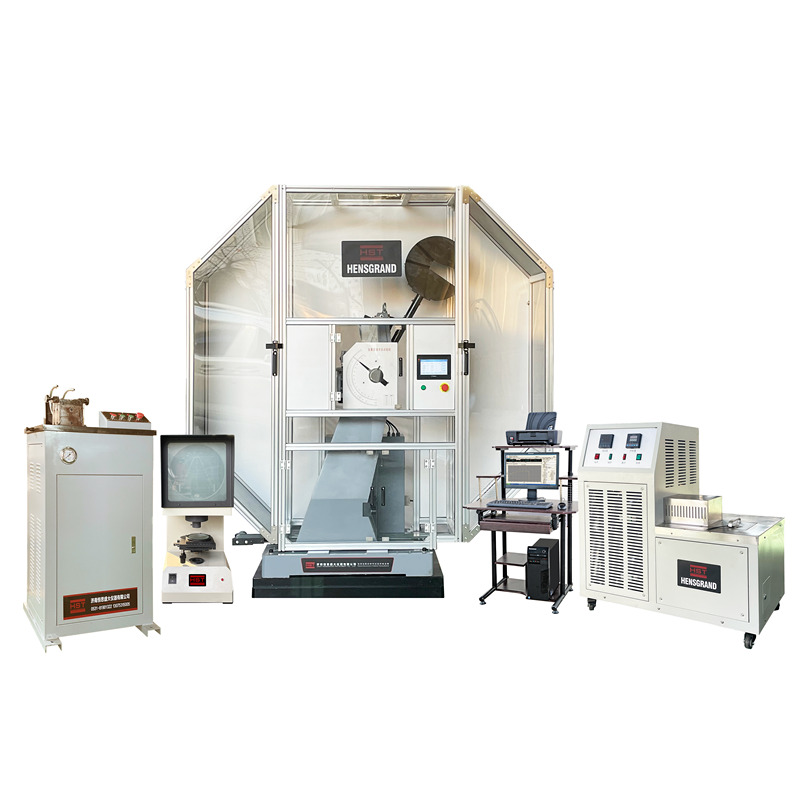

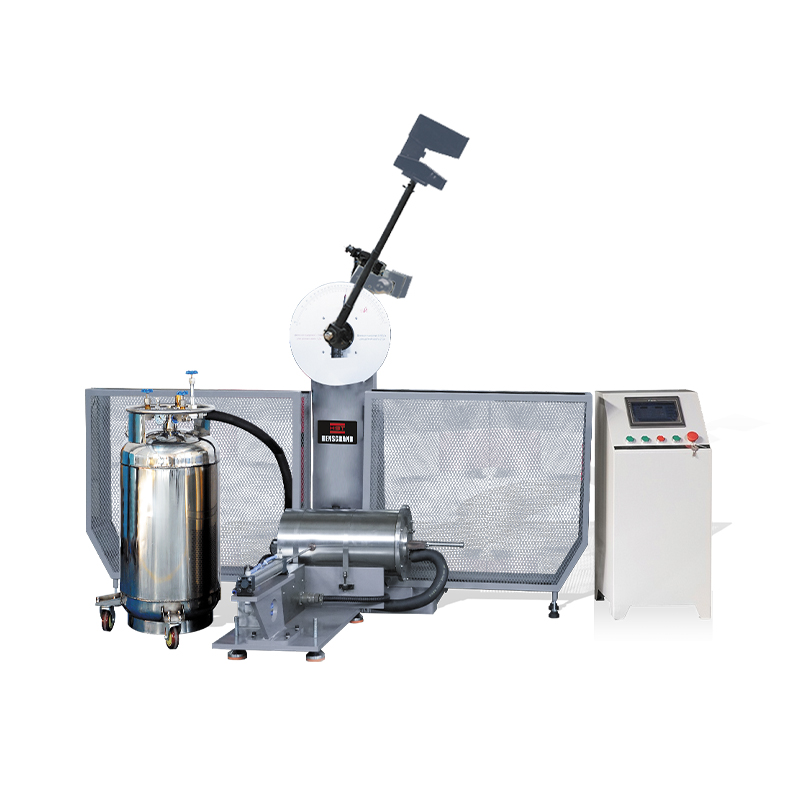

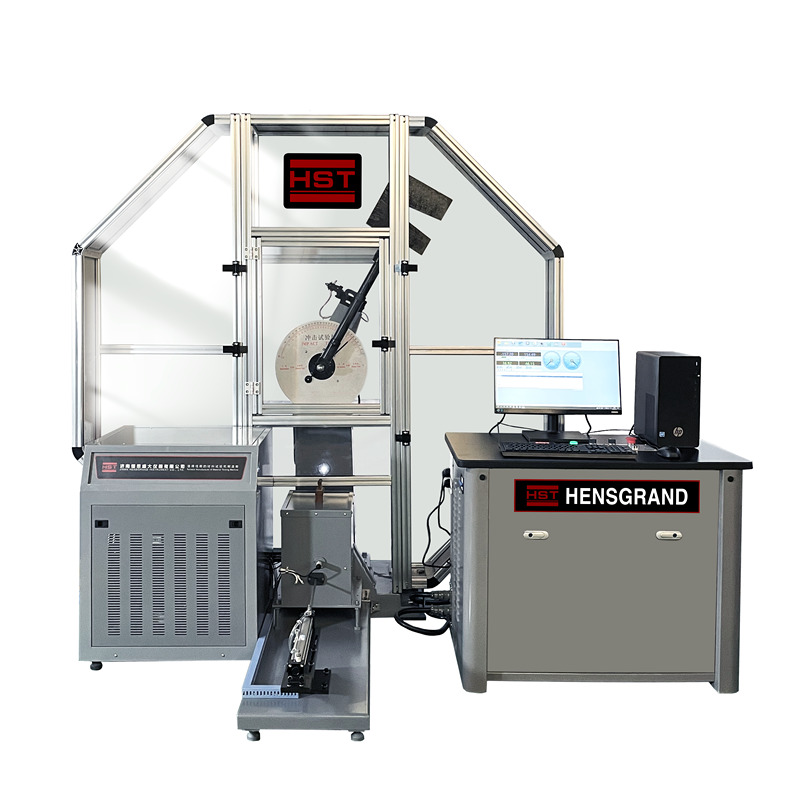

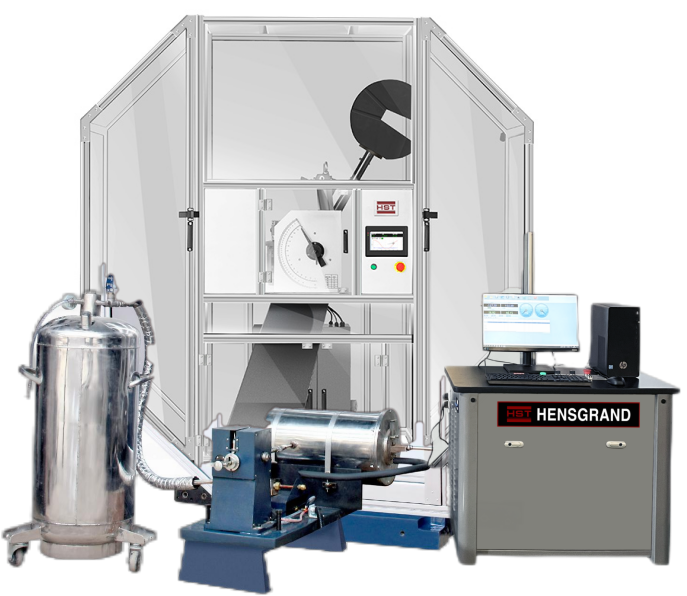

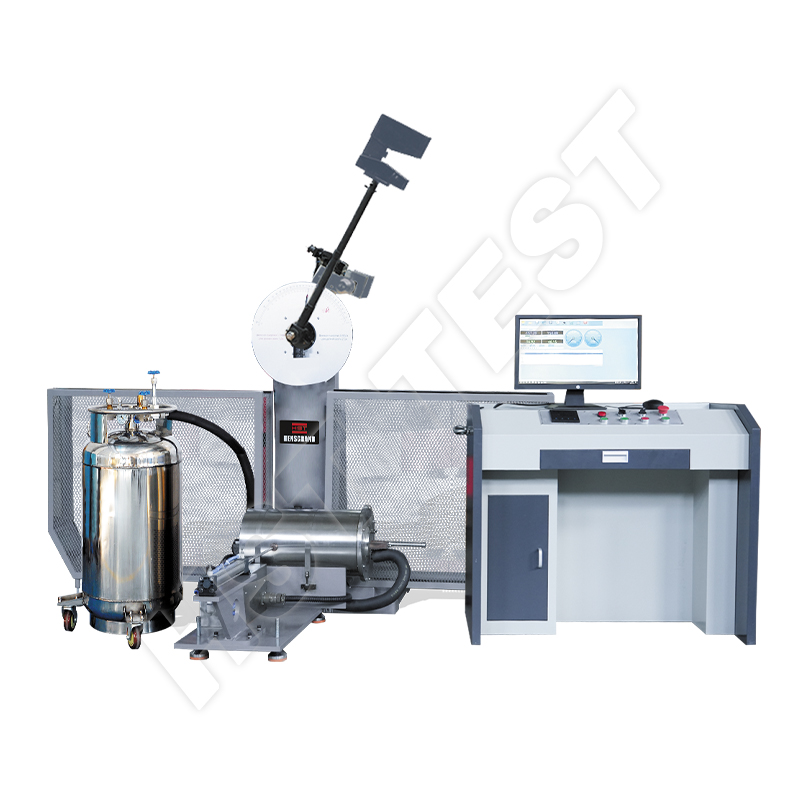

JBDW-CY -60°c/80°c Computer Control Low-temperature Automatic Impact Testing Machine
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.Liquid nitrogen refrigeration
Main Technical Specifications:
|
MODEL |
JBDW-300CY-60 JBDW-300CY-80 |
JBDW-450CY-60 JBDW-450CY-80
|
JBDW-600CY-60 JBDW-600CY-80 |
JBDW-750CY-60 JBDW-750CY-80 |
|
Max. impact energy(J) |
300 |
450 |
600 |
750 |
|
Pendulum torque(N·m)
|
M=80.3848 |
M=160.7695 |
M=241.1543 |
M=321.5390 |
|
Raised angle(mm) |
150°±1° |
|||
|
Distance from the axis of support to the center of percussion(mm) |
750 |
|||
|
Impact speed(m/s) |
5.24 |
|||
|
Standard span(mm) |
40 |
|||
|
Round angle of the jaw |
R (1.0~1.5)mm (1mm is special ordered.) |
|||
|
Angle of Taper of Supports |
11°±1° |
|||
|
Angle of Striking Tip |
30°±1° |
|||
|
Thickness of Striking(mm) |
16 |
|||
|
Round corner of support jaw |
R (1.0~1.5)mm (1mm is special ordered.) |
|||
|
Blade curvature radius |
R (2.0~2.5)mm (8mm is special ordered.) |
|||
|
Standard specimen dimension(mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|||
|
Cooling way |
compressor Compressor refrigeration Encountered an improper argument. |
|||
|
Capacity of sample box |
20 |
|||
|
Range of low temperature |
-60°c/-80°c/-100°c |
|||
|
Speed of sending specimen |
≤2S |
|||
|
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|||
