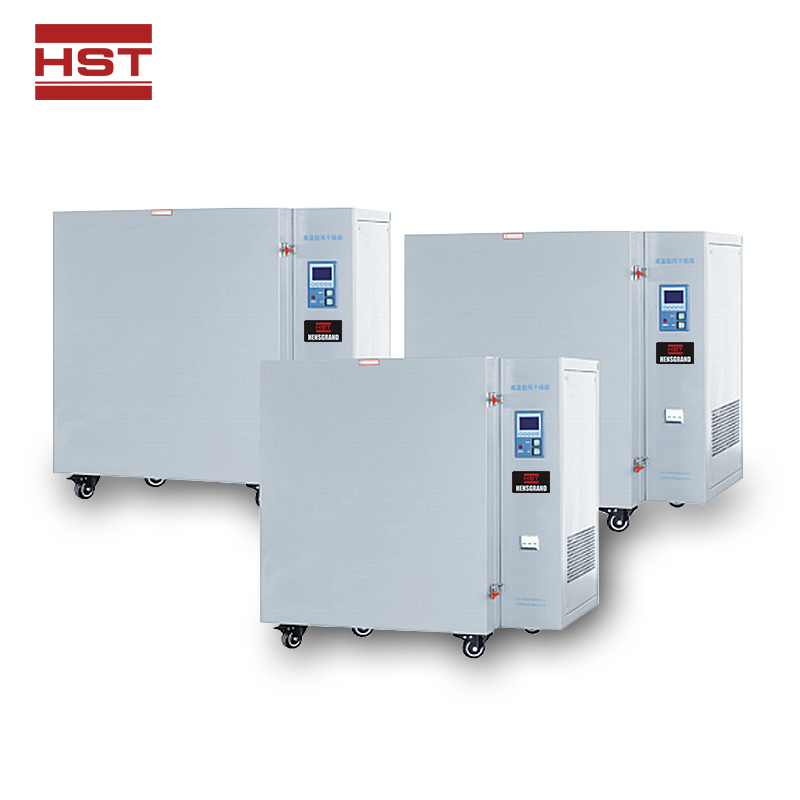

HST-HTDO50AH High Temperature Drying Oven

Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.

Standards:

Request A Quote Files Download

HST-HTDO50AH High Temperature Drying Oven

LCD Programmable controller (with timing function)

Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.

Features

1.304 stainless steel, mirror polishing processing, semicircular arcs at corners easy to clean and maintain. The space between the shelves in the chamber is adjustable.

2.PID controller with over temperature alarm and timing function ensures precise and reliable control.

3.Ceramic fiber door seal, which can run at high temperature for a long time and has a long service life.

4.Programmable controller: 7 periods 63 steps, 0 ~5999mins for each period, can preset boot and shutdown time, adjustable circulating fan.

5.Independent over-temperature alarm system ensures experiments running safely

Specifications

Model

HST-HTDO50AH

Electrical Requirements

AC380V 50HZ

Temperature Range

AH series:RT+20℃400℃

Display Resolution

0.1℃

Temperature Stability

±0.5℃

Ambient Temperature

+5~40℃

Power Consumption

3250W

Chamber Volume

50L

Internal Dimension (W×D×H)mm

350×350×400

External Dimension (W×D×H)mm

890×700×920

Shelves

2(pcs)

Timing Range

0~5999min

Options

Micro printer     RS485 connector
