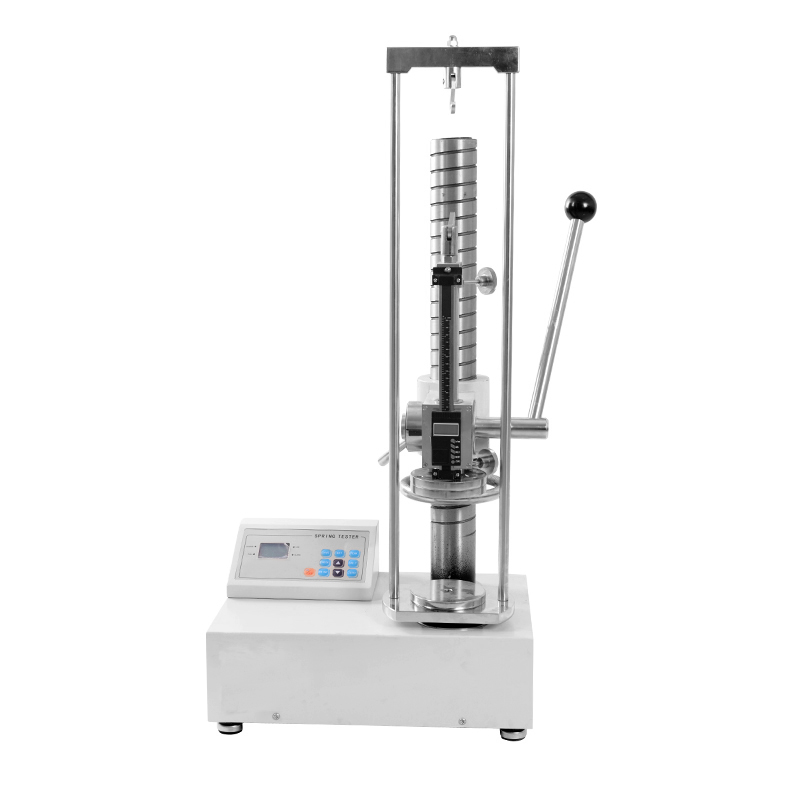

HST-TLS Digital spring tension and compression test machine(1000-5000N)
Digital spring tension and compression test machine
HST-TLS series spring pull pressure test stand is specially design for measuring the stretches and compression distortion value of spring, and the load relations characteristic. It is applied in measuring the working load of spring when it on the certain length stretched and compressed.
Parameter:
|
Model Number |
HST- TLS1000 |
HST- TLS2000 |
HST- TLS3000 |
HST- TLS5000 |
|
Maximum testing load |
1000N |
2000N |
3000N |
5000N |
|
Minimum resolution |
0.1N |
|||
|
Diameter of the platen |
108mm |
|||
|
Maximum free length of measurable spring |
200mm |
|||
|
Length of travel of the displacement scale |
150mm |
|||
|
Division value of the displacement scale |
0.01mm |
|||
|
Indication error |
±1% |
|||
|
Power Supply |
AC 110-220V, 50HZ-60HZ |
|||
|
Power capability (without printer) |
13W |
|||
|
Power capability (with printer) |
20W |
|||
|
Working temperature |
20±10℃ |
|||
|
Temperature of storage and transportation |
-27℃~+70℃ |
|||
|
Relative temperature |
15%~80%RH |
|||
