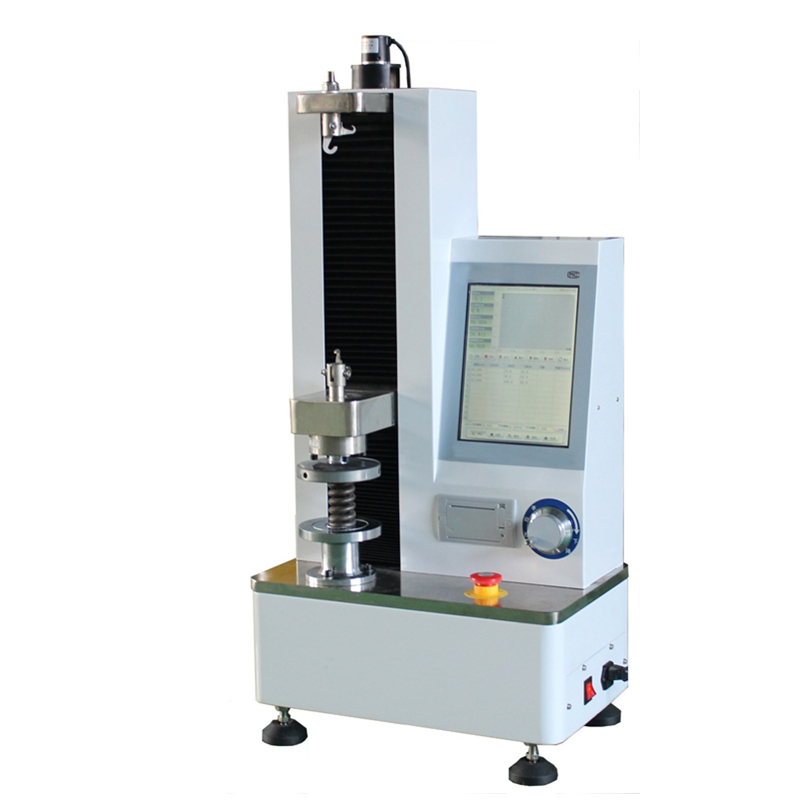

This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
2.1 Implementation standard of testing machine:JB/T 7796-2005 《Tension and compression spring testing machines》
2.2 JJF 1134-2005 《Calibration specification for special working measuring machines》
2.3 GB/T 13634 《Calibration of dynamometers for testing on testing machines》
MODEL |
HST- TLS500T |
HST- TLS1000T |
HST- TLS2000T |
HST- TLS3000T |
HST- TLS5000T |
Capacity |
500N |
1000N |
2000N |
3000N |
5000N |
Testing machine grade |
Class 1 |
||||
Display type |
LCD display with touch screen |
||||
Measuring range |
1%-100% |
||||
Load resolution |
100N/0.01N, 1000N-2000N/0.1N |
||||
Relative error of zero point |
±0.1% |
||||
Relative error of test force indicating value |
±1.0% |
||||
Resolution of displacement |
0.001mm |
||||
Displacement indication error (micron) |
≤±(50+0.15l) |
||||
Test space |
600mm |
||||
Plate |
100mm |
||||
Test speed range |
0.01mm/min-500mm/min |
||||
Dimensions |
About 435*275*850mm |
||||
Weight |
About 100kg |
||||
Power supply |
AC 220V±10% 50-60Hz |
||||
Data processing |
Automatic collection, processing, can save, query, print |
||||
Protection function |
Load, travel double protection |
||||
Noise |
55dB(A) |
