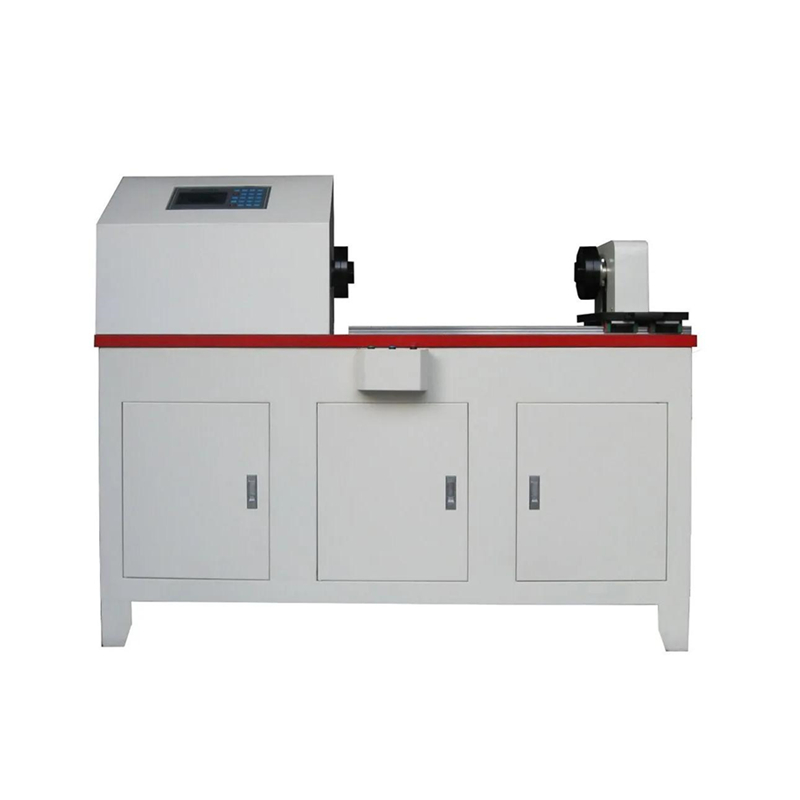

NDS-500/1000/2000NM Digital display material torsion tester
Application
This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite materials and components
Standard
GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”
Features
1. Automatic stop：After the sample broke, the moving beam automatically stop 2．2. Display mode：During the test process, real time display the torque force, torque angle, torque speed, peak value, and test condition and others displayed in the same LCD screen;
3．Limit protection：with stored program control (SPC ) and mechanical two level limit protection
4．Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working When the load over
Specifications
|
Model |
NDS-200 |
NDS-500 |
NDS-1000 |
NDS-2000 |
NDS-30000 |
NDS-5000 |
|
Max torque（N/m） |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
|
Test class |
1 class |
|||||
|
Control method |
single chip control |
|||||
|
Torque test range(F·S) |
2%～100%F·S |
|||||
|
Torque value accuracy |
≤±1 |
|||||
|
Torque display resolution |
1/5000 |
|||||
|
Angle value accuracy (%) |
≤±1 |
|||||
|
Angle display resolution(°) |
0.01 |
|||||
|
Max torque angle |
99999° |
|||||
|
Torque angular rate control rang(°/min) |
0.05-800 |
|||||
|
Effective distance between chucks (mm) |
600 |
|||||
|
Test rotating direction |
Two ways |
|||||
|
Power |
220V±10%，50Hz |
|||||
