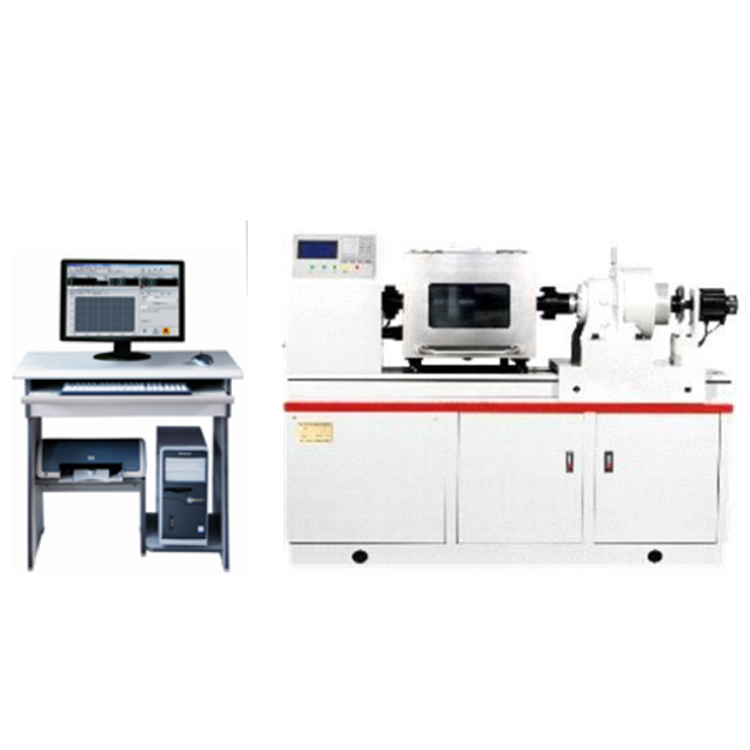

HST-NW Series Computer Control Material Torsion Testing Machine(500-10000NM)
This series torsion testing machine is suitable for metal materials, non-metallic materials, composite materials and components of torsion performance test.
Standards:
GB/T 10128-1998,GB/T 10128-2007
Request A Quote Files DownloadHST-NW Series Computer Control Material Torsion Testing Machine(500-10000NM)
Introduction
This series torsion testing machine is suitable for metal materials, non-metallic materials, composite materials and components of torsion performance test.Technical parameter:
| Model | HST-N100W | HST-N200W | HST-N500W | HST-N1000W | HST-N2000W | HST-N3000W | HST-N5000W | |
| Maximum Torque（N/m） | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | |
| Control Method | Constant torque and constant speed rotation, constant speed twist angle , close loop control mode | |||||||
| Machine level | 1 Class | |||||||
| Torque Test Range(F·S) | 2%～100%F·S | |||||||
| Torque value relative error(%) | ≤±1 | |||||||
| Torque display resolution | 1/20000 | |||||||
| Torsional Angle Test Range(F·S) | 2%～100% | |||||||
| Torsional Angle value relative error (%) | Better than ±0.5 | |||||||
| Torsional Angle display resolution | 1/20000 | |||||||
| intersection angle value relative error (%) | ≤±1 | |||||||
| intersection angle display resolution(°) | 0.01 | |||||||
| Max. torsion Angle | 99999° | |||||||
| Torsional angular rate control range (°/min) | 0.05-800 | |||||||
| Chuck spacing effectively (mm) | 600 | |||||||
| Power Supply | 220V±10%，50Hz | |||||||
