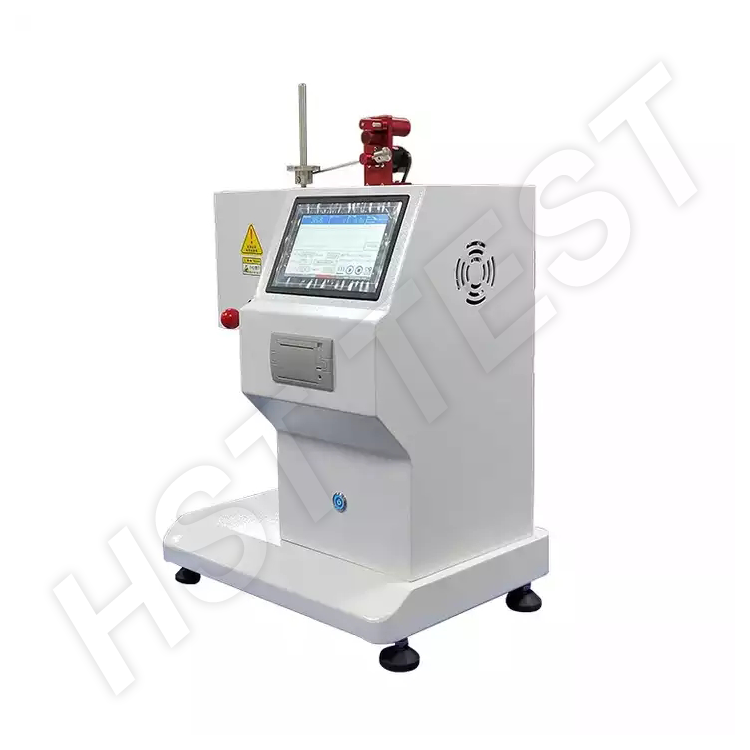

HNR-400CT Touch Screen Melt Flow Indexer(MFR)
Product Description
Melt Flow Index Tester used to measure the thermoplastic resin melt mass flow rate (MFR), and the density of the melt, which is widely used in plastic raw materials, products, petroleum and chemical industries, and related colleges and universities, scientific research units and the commodity inspection department.
Main Parameters
Model
Test Method
MELT MASS FLOW RATE (MFR)
Size of barrel
Diameter: 9.55±0.025mm ; length: 160 mm
Outlet diameter
8.000±0.025mm
Inside diameter of die
2.095 mm; length 8±0.025 mm
Temperature range
Room temperature~450°C
Temperature display resolution
0.1°C
Accuracy
±0.2°C
Time display resolution
0.1S
Weight accuracy
±0.5%
Displacement sensor
0.001S
Displacement measuring encoder
Omron optical rotary encoder
MFR test range
0.1-150g/10min
MVR test range
50-5000cm3/10min
Power
220V±10% 50HZ
