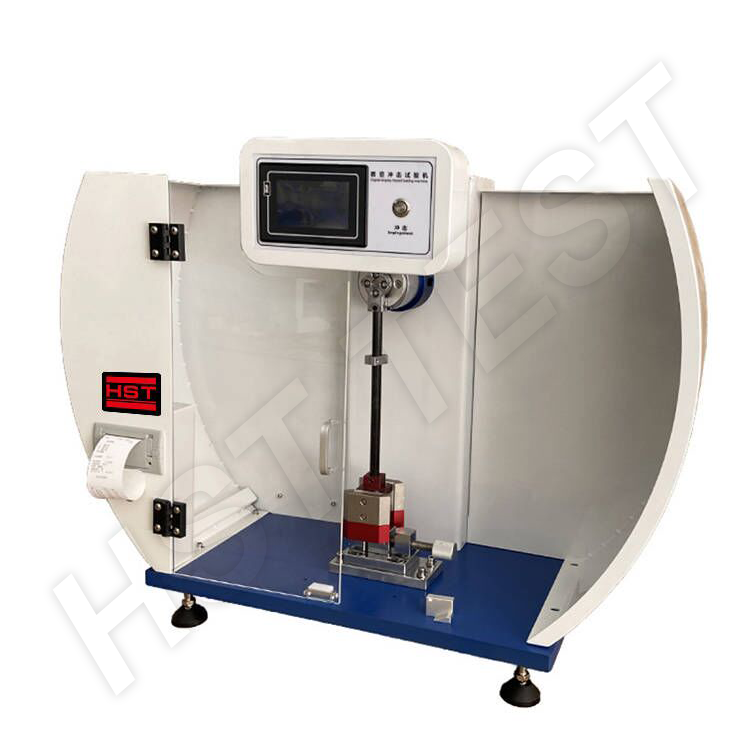

XJJD-T Digital Display Plastic Charpy Impact Testing Machine( 1,2,4,5J )
Application:
This series is mainly used in testing the nonmetal materials'' impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc.
Conform to the requirements of ISO179, ISO180, GB/T1043, GB/T1843, GB/T13525, etc.
Main specification:
Impact speed: 2.9m/s
Impact energy: 1.0 / 2.0/ 4.0 / 5J
Pendulum angle: 150°
Hitting distance from center: 230mm
Impact circle angle: R2mm±0.5mm
Distance between jaws: 40, 60, 62, 70mm
Dimension: 420×350×700
Net weight: 105kg
