1.Applications:

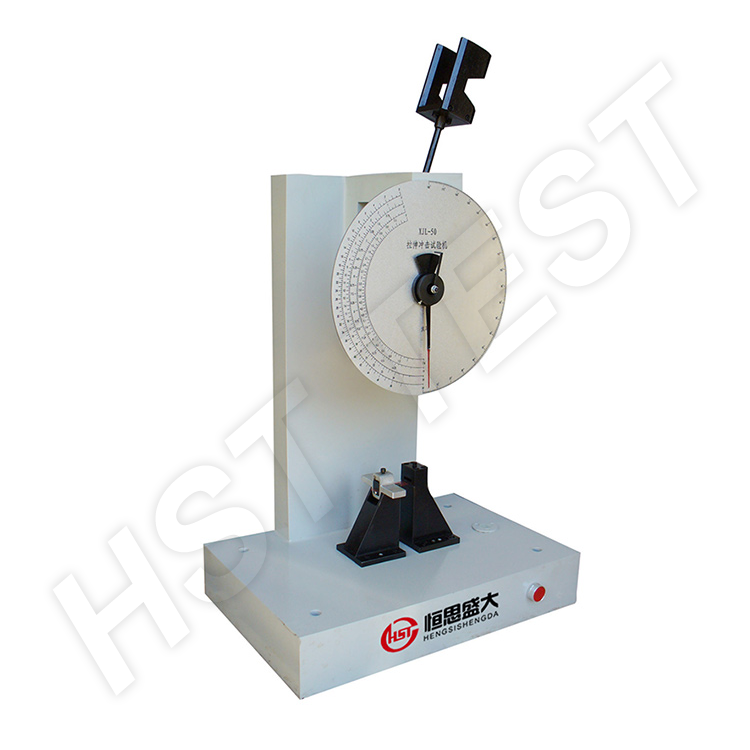

Dial DisplayPlasticCharpy
Impact Testing Machineis pointer dial, electric hammer block release.
Application:hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2. Standard:
JB/T8761、GB/T1043、ISO179 and so on.
3. Main Specifications:
Model
|
XJJ-5
|
XJJ-50
|
Impact Energy
|
5 J
|
50 J
|
Impact Speed
|
2.9 m/s
|
3.8m/s
|
Pendulum Angle
|
160°
|
160°
|
Round Angle Of The Jaw
|
R=1±0.1 mm
|
Round Angle Of Impact Cutting Edge
|
R=2±0.5 mm
|
Impact Blade Angle
|
30±l°
|
The Distance Between Pendulum
Center And Sample Center
|
221 mm
|
380mm
|
