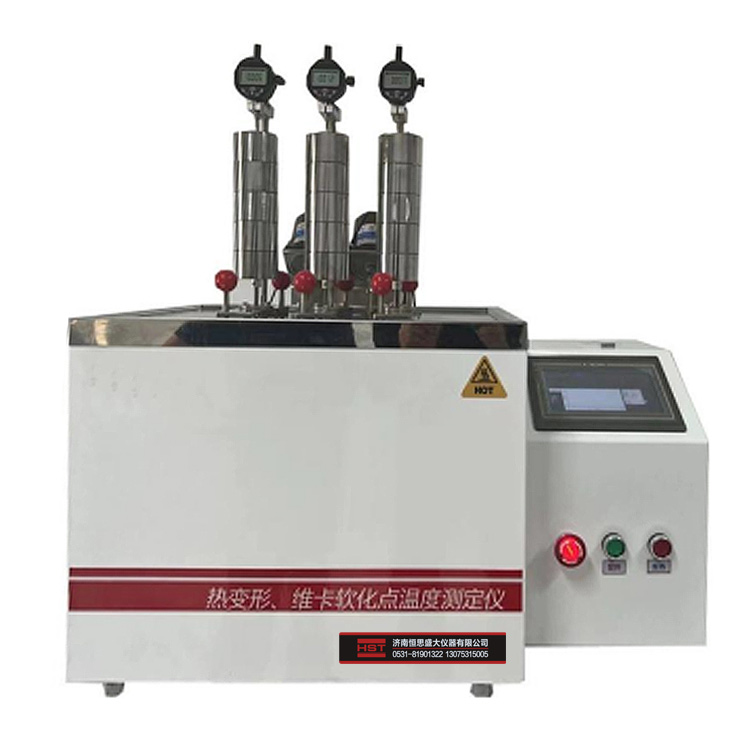

Plastics HDT Vicat Softening Temperature Test Point Tester
Application:
HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.
standard:
GB / T1633 "Determination of Vicat Softening Temperature (VST) of Thermoplastics"
GB / T1634 "Determination of Plastic Load Deformation Temperature Part 1: General Test Method"
GB / T8802 "Determination of softening temperature of plastic pipe fittings"
IS075-2013 "Determination of Plastic Load Deformation Temperature"
ASTM D 648 "Test Method for Thermal Deformation Temperature of Plastics"
ASTM D 1525 "Test Method for Vicat Softening Temperature of Plastics"
Specification
|
Model |
HDT/V-3003S |
HDT/V-3003T |
HDT/V-3003WF |
|
Structure |
Table type |
Table type |

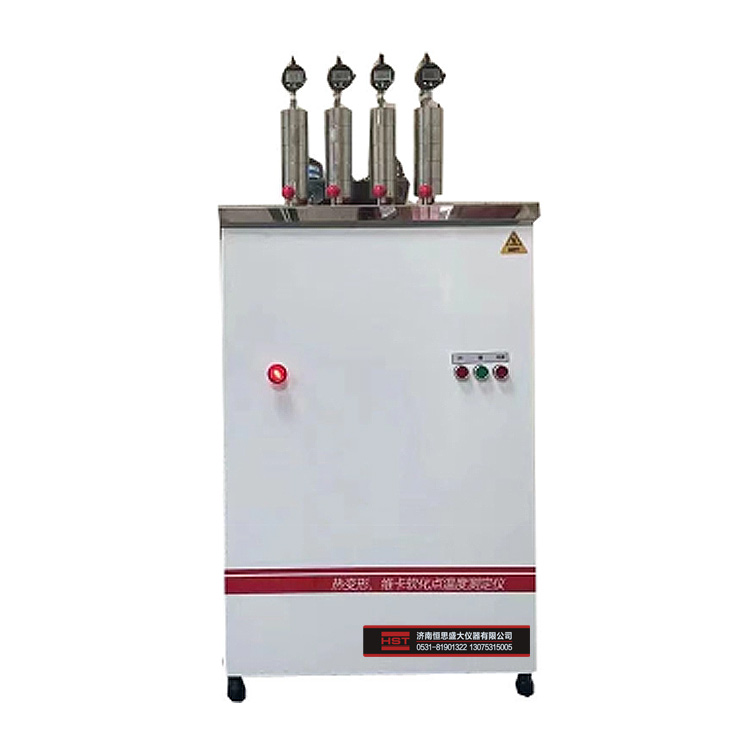

Floor Type |
|
Display |
LCD display |
Touch Sreen or computer |
Touch Sreen or computer |
|
Sample Frame |
Manual |
Automatic Lift and Drop |
|
|
Temperature range |
RT~300℃ |
RT~300℃ |
RT~300℃ |
|
Heating speed |
120℃/h [(12±1)℃/6min] 50℃/h [(5±0.5)℃/6min] |
120℃/h [(12±1)℃/6min] 50℃/h [(5±0.5)℃/6min] |
120℃/h [(12±1)℃/6min] 50℃/h [(5±0.5)℃/6min] |
|
Max. temperature error |
±0.5℃ |
±0.5℃ |
±0.5℃ |
|
Distortion range |
3mm |
3mm |
3mm |
|
Max. distortion error |
0.01mm |
0.01mm |
0.01mm |
|
Working position |
3 (4 or 6 optional) |
3 (4 or 6 optional) |
3 (4 or 6 optional) |
|
Cooling method |
Below 150℃: water cooling Over 150℃: air cooling |
Below 150℃: water cooling Over 150℃: air cooling |
Below 150℃: water cooling Over 150℃: air cooling |
|
Power supply |
AC220V, 10A, 50Hz |
AC220V, 10A, 50Hz |
AC220V, 10A, 50Hz |
