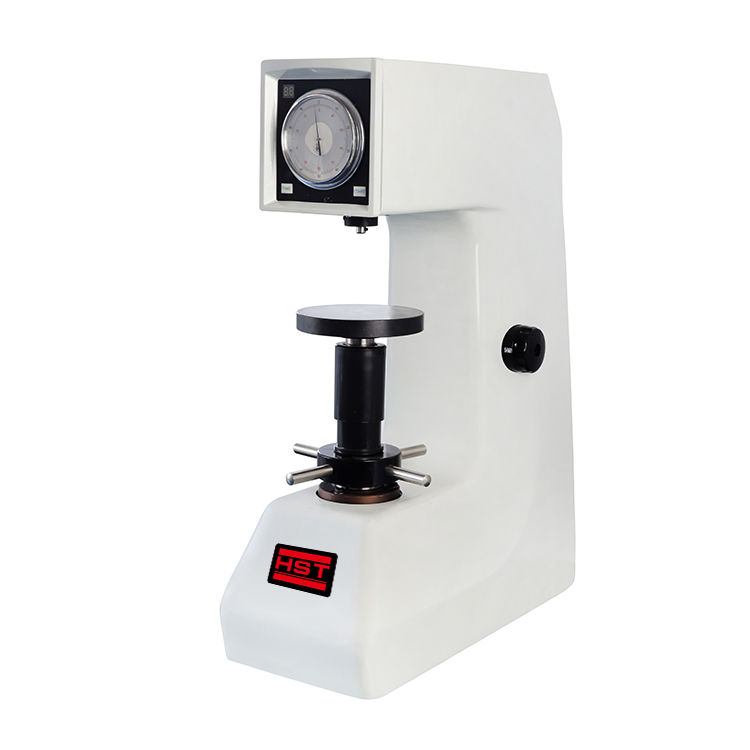

XHRD-150 Electric Control Plastic Rockwell Hardness Tester

Product description:

XHRD-150 Electric Control Plastic Rockwell Hardness Tester

Share With:

We're here to help:
Easy ways to get the answers you need.
Send E-mail Chat Now


1.Application:

XHRD-150 Electric Control Plastic Rockwell Hardness Tester is a specialized test non-metallic plastic, hard rubber, synthetic resin, friction material and soft metal hardness tester.
Simple operation, easy to master, high working efficiency.

It mainly functions are as follows:
1.1. Lever Loading, durable and reliable, the test process automation, no human operator error.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value,HRE,HRL,HRM,HRR,and can choose other Rockwell Scale.
1.5. Accuracy according to JB/T7409 standard.

2.Technical Specifications:


Model XHRD-150
Measurement Range 70-100HRE, 50-115HRL,
50-115HRM, 50-115HRR.
Test Force 588.4, 980.7, 1471 N (60,100,150 kgf)
Sample Permitted Maximum Height 200 mm
The Distance Between Pressure
Head Center And The Wall
135 mm
Hardness Resolution 0.5HR
Weight About 70 KG
Dimensions 500*250*700mm
Power AC220V, 50Hz
