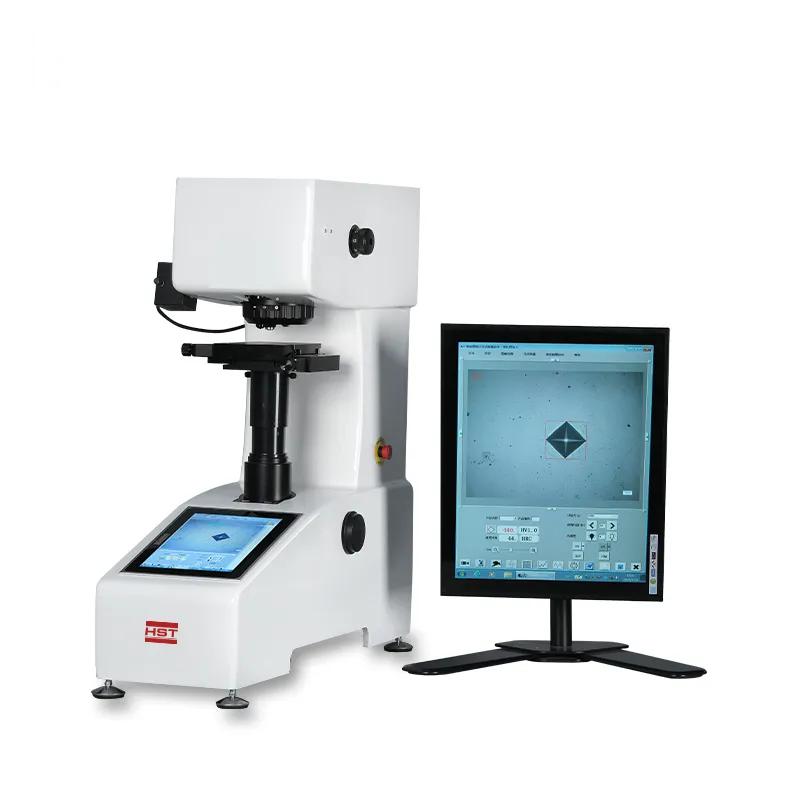

HST-HVS1000TPC Integrated Intelligent Visual Hardness Tester
This machine is equipped with Vickers automatic measurement and control system
Standards:
ASTM, ISO
Request A Quote Files DownloadHST-HVS1000TPC Integrated Intelligent Visual Hardness Tester
Application:
This machine is equipped with Vickers automatic measurement and control system: it can carry out successive experiments of each loading and each reading of indentation. The ccd camera with convenient observation is adopted, and the indentation can be directly observed on the display. The measurement accuracy is high, and the manual measurement error is avoided. The set test conditions and display results can be operated and displayed clearly and quickly. Through the measurement control software, it is easy to operate on the built-in computer, and the single point measurement can randomly measure multiple points and make statistics of the measurement data. The distance between two points or multiple points can be arbitrarily set for the depth measurement of the infiltration layer. The measurement data can be measured and made statistics along the X or Y directions, and the hardened layer depth can be automatically calculated according to the judgment value entered by the user. Statistical calculation, conversion Display curve to judge whether it is qualified, etc. Save and print the graph of measurable part length, etc
General specifications:
|
scale of hardness |
HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
|
Force (gf) |
10,25,50,100,200,300,500,1000 |
|
Range of hardness measurements |
(5-3000)HV |
|
Unit conversion: |
Brinell, Rockwell, Nussell (and switchable: ASTM、ISO、JJG standard) |
|
hardness value |
PC automatic hardness measurement |
|
Eligibility criteria |
Can set up qualified range, machine automatically remind whether qualified |
|
Language switching |
Chinese and English systems switching at any time |
|
error correction |
Calibration of hardness at all times |
|
Scale conversion |
HK( Nouri) |
|
Hardness value conversion |
Brinell, Rockwell, Vickers |
|
Test report |
Auto generate |
|
Load control |
Automatic loading, automatic holding, automatic unloading |
|
Objective lens and indenter |
Automatic switching |
|
Auto Z-axis |
Auto focus |
|
optical system |
Support for dual channels |
|
Force retention time (s) |
5～60 |
|
Test Force Selection |
External force selector knob, test force automatically displayed on computer |
|
magnification factor |
10×，40× |
|
Optical system |
Total magnification (μm):100×(observation),400×(measurement); range (μm):200; |
|
Optical system resolution(μm) |
0.0625 |
|
XY test |
Size (mm):100×100 travel range (mm):25×25 minimum reading (mm):0.01 |
|
Maximum height of specimen(mm) |
150 |
|
Maximum width of specimen(mm) |
120 |
|
supply voltage |
AC220V/50HZ |
|
Weight(kg) |
60 |
|
Exterior dimensions |
620mmX230mmX630mm |
