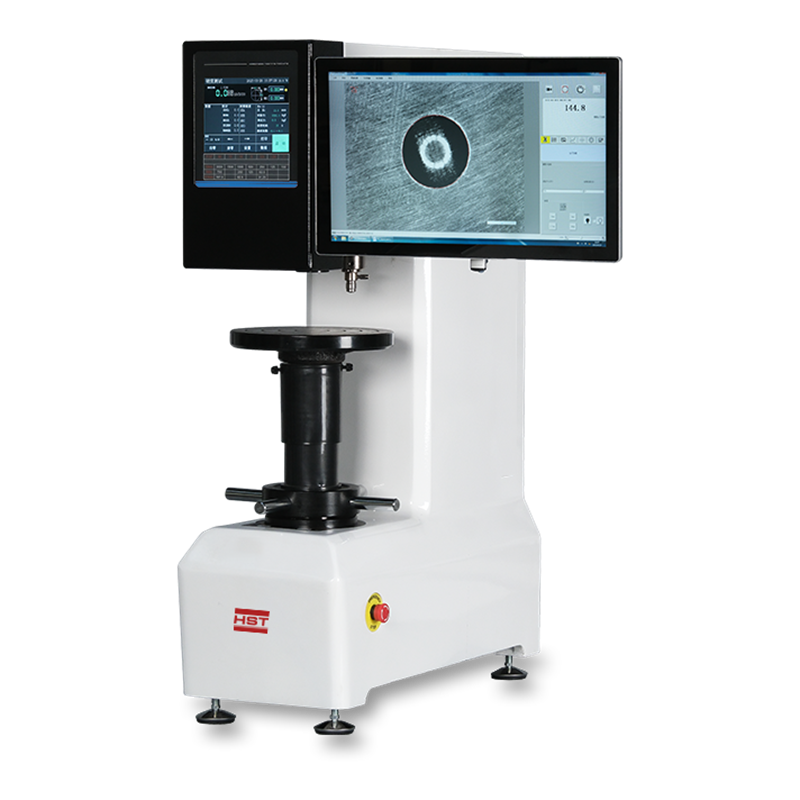

HST-HBT3000PCZ Visual Touch Screen Digital Brinell Hardness Tester
HST-HBT3000PCZ touch-screen digital Brinell hardness tester can be easily measured by operating a touch tablet computer
Standards:
ASTM, ISO
Request A Quote Files Download
Main purpose and scope of use:
1. It is suitable for the Hardness Tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;
2. Cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.
3. It can be used to measure the hardness of some non-metallic materials such as hard plastics, bakelite, etc.
Technical parameter：
|
Product model
|
HST-HBT3000PCZ |
|
Brinell Ruler |
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100、 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000 |
|
Test force |
62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N) |
|
Loading control |
Automatic (loading/holding/unloading) |
|
Maximum height of specimen |
220mm |
|
Indenter-outer wall distance |
135mm |
|
Indenter-upper wall distance |
55mm（The distance from the indenter to the upper machine wall can be increased by customizing the indenter ） |
|
Smallest unit of measurement |
0.125um |
|
Dwell time |
0~60s |
|
Hardness Test range |
8~650HBW |
|
Turret |
Automatic turret |
|
Hardness reading |
PCAutomatic hardness measurement |
|
Error correction |
The system calibrates the hardness at any time |
|
Qualified judgment |
The qualified range can be set, and the machine automatically reminds whether it is qualified |
|
Total magnification |
20X |
|
Executive standard |
EN ISO 6506, , ASTM E-10-08, GB/T231.2，JJG150 -2005 |
|
Data output |
The computer saves the test data directly |
|
power supply |
AC220+5%,50~60Hz |
|
Overall size (mm) |
520*210*745mm |
|
Host weight |
About 125kg |
