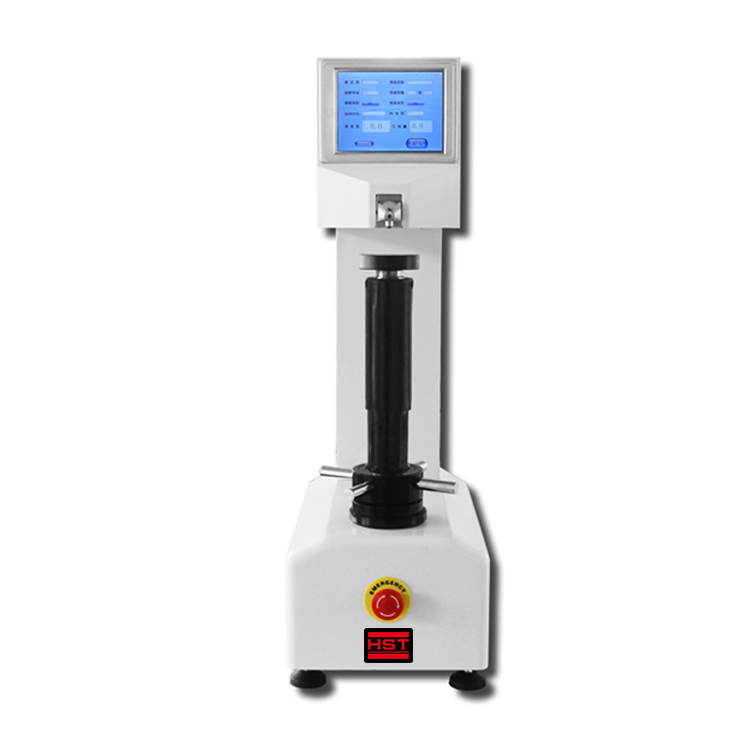

HRS-150DXC NOSED AUTOMATIC ROCKWELL HARDNESS TESTER

HRS-150DXC NOSED AUTOMATIC ROCKWELL HARDNESS TESTER
HRS-150DXC NOSED AUTOMATIC ROCKWELL HARDNESS TESTER
HRS-150DXC NOSED AUTOMATIC ROCKWELL HARDNESS TESTER
Applications:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness. Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.

Technical specifications:

Conversion Scale Brinell, Vickers
Display of Hardness Value Touchable Large LCD screen display
Data output Inside Printer, RS-232
Duration time 0-60s
Carried Standard GB/T230.2 Chinese Standard, JJG112 Inspection Rule
Preliminary Testing force 10kgf(98.07N)
Testing force 60kgf(588N)   100kgf(980N)    150kgf(1471N)
Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Hardness measuring range HRA:20-88   HRB:20-100  HRC:20-70  HRD:40-77
HRF:60-100  HRG:30-94  HRH:80-100  HRK:40-100
Test force Deviation ≤0.5%
Testing accuracy 0.1
Max Height of Specimen 300mm
Distance of Indenter to outer wall 200mm
Power supply AC220V+5%,50-60Hz
Overall Dimensions 710mm*250mm*880mm
Data Output USB Flash Disk
