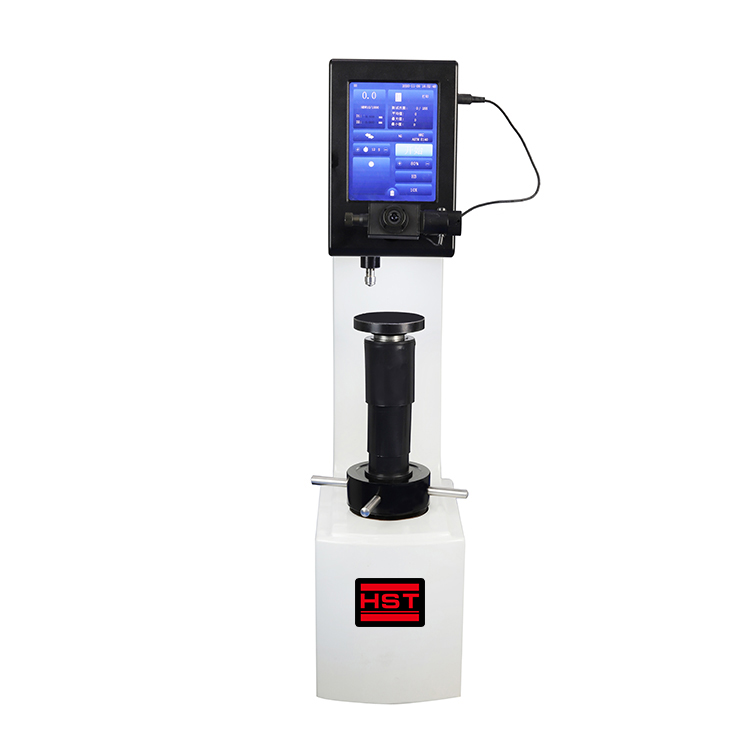

HBS-3000Z Auto-Turret Digital Brinell hardness tester

Product description:

HBS-3000Z Auto-Turret Digital Brinell hardness tester

Share With:

We're here to help:
Easy ways to get the answers you need.
Send E-mail Chat Now


Application areas:

Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,

Technical Specifications:
Model HBS-3000Z
Turret Type Motorized Auto Turret
Brinell Scale HBW2.5/62.5  HBW2.5/187.5  HBW5/125    HBW5/750    HBW10/100、
HBW10/1500  HBW10/3000   HBW10/250   HBW10/500   HBW10/1000
Testing Force 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)
500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N)
Max Height of Specimen 200mm
Main Measuring unit 0.625µm
Net Weight About 90kg
Power supply AC220+5%,50~60Hz
Overall Dimension (mm) 550*210*750mm
Duration time 5~60s
Hardness testing Range 8~650HBW
Magnification of Microscope 20X
Carried Standard GB/T231.2 Chinese Standard, JJG150 Inspection Rule
Distance of Indenter to outer wall 135mm
Indication of Hardness Value LCD display, Printer Output, Inside Printer
