Application:

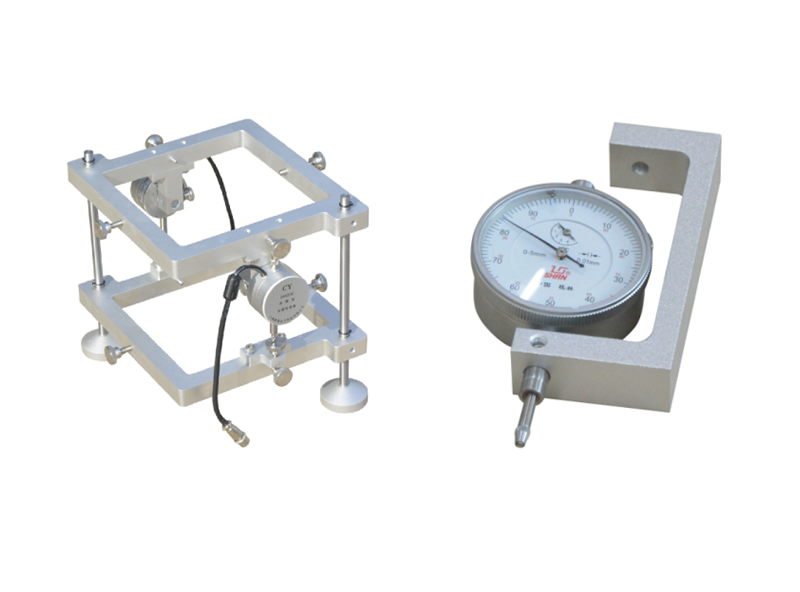

Determination of Static Compression Elastic modulus on concrete requires a Compression Testing machine of controlling pace rate precision 1 grade. This TEST FRAME adopts both dial gauge and displacement sensor. While the TEST FRAME measuring accuracy should be better than 0.001mm.

This TEST FRAME is a working stand which quality is very important to ensures the measuring data.

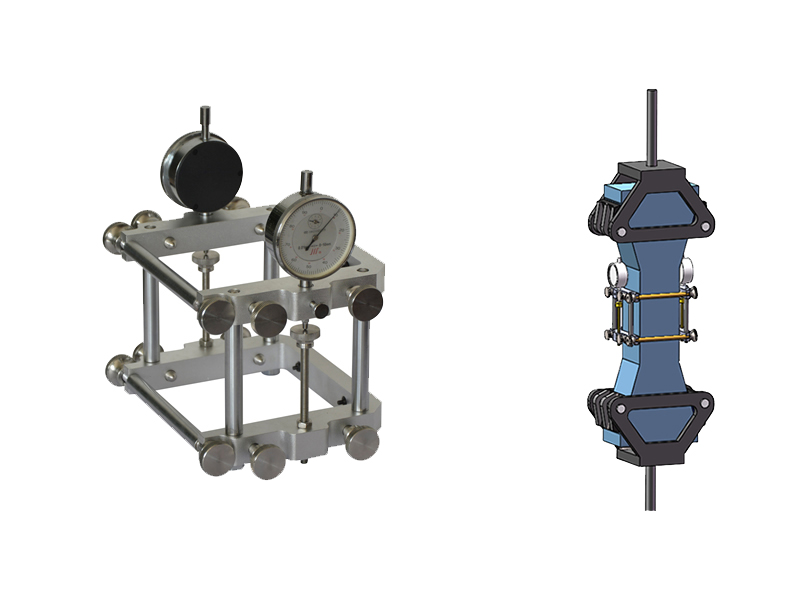

This TEST FRAME suitable for concrete specimen of prism, cube or cylinder with a gauge length 150mm. Easy and quick application to the specimen.

• Gauge length: 150mm
• Specimen range: prism, cube or cylinder
• Dial gauge or inductive sensor are NOT included in the standard configure.
