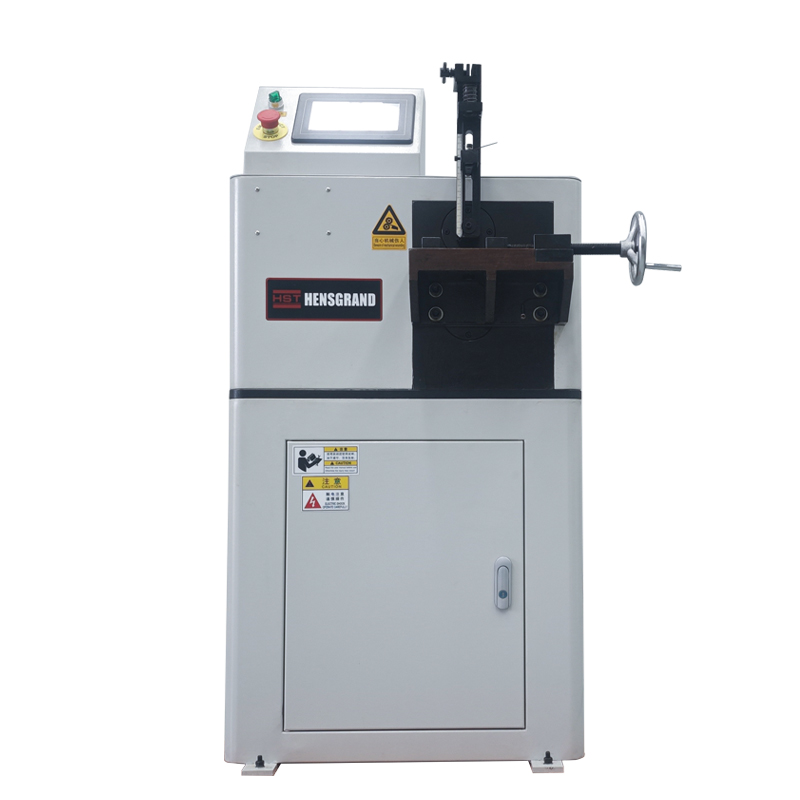

HST JWJ-13 13mm Electric metal wire repeated bending test machine
Application
This testing machine is mainly used for repeated bending test of metal wire and testing performance and defect of bearing plastic deformation at the process of bending metal wire repeatedly.You can operate on digital display screen and it shows bending times. It can also process sheet metal bending test after using sheet clamping device.
Specifications
|
MOEDL |
HST-JWJ13 |
|
Item |
Parameters |
|
Sample Diameter(mm) |
Ф1-Ф12.5 |
|
Sample Length(mm) |
150-200 |
|
Bending Angle |
±90° |
|
Bending Speed（times/min) |
≤ 60 |
|
Numeration Range(time) |
0-9999 |
|
Motor Power |
1.1Kw |
|
External Dimensions(mm) |
1200*730*410 |
|
Tester Weight |
About 250 |
