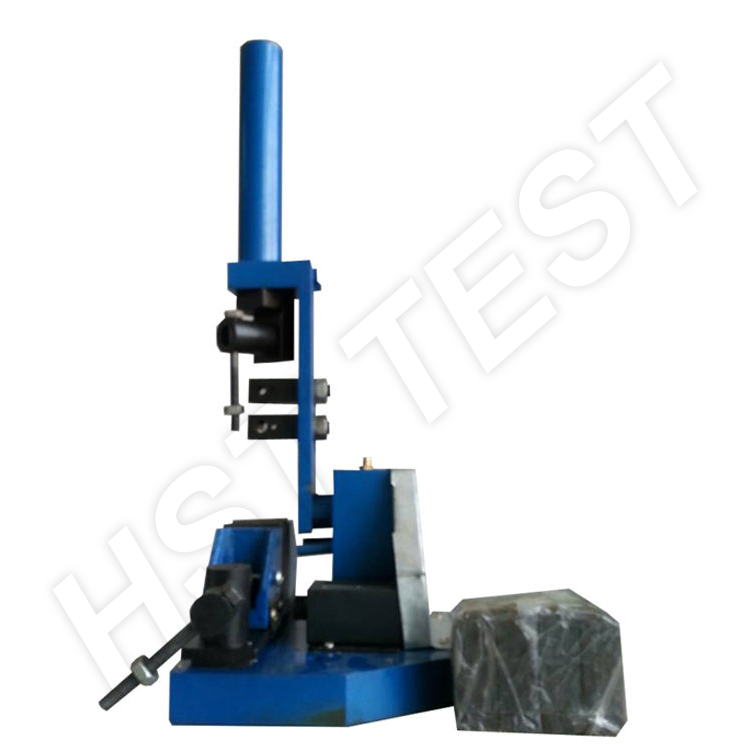

GWS Manual Wire Bending Testing Machine
Application:
This testing machine is mainly used for repeated bend test of metal wire and testing performance and defect of bearing plastic deformation at the process of repeated bending metal wire.
Main Technical Parameter:
|
Mode |
GWS-2 |
GWS-8 |
|
Bending wire diameter |
Φ0.5 ~ Φ2mm |
Φ0.5~ Φ8mm |
|
Forward bending angle |
0° to 90° |
0° to 90° |
|
Reverse bending angle |
0° to 90° |
0° to 90° |
|
Dimension |
200*200*450 |
200*200*450 |
|
Machine weight |
10 kg |
10 kg |
