1. Application

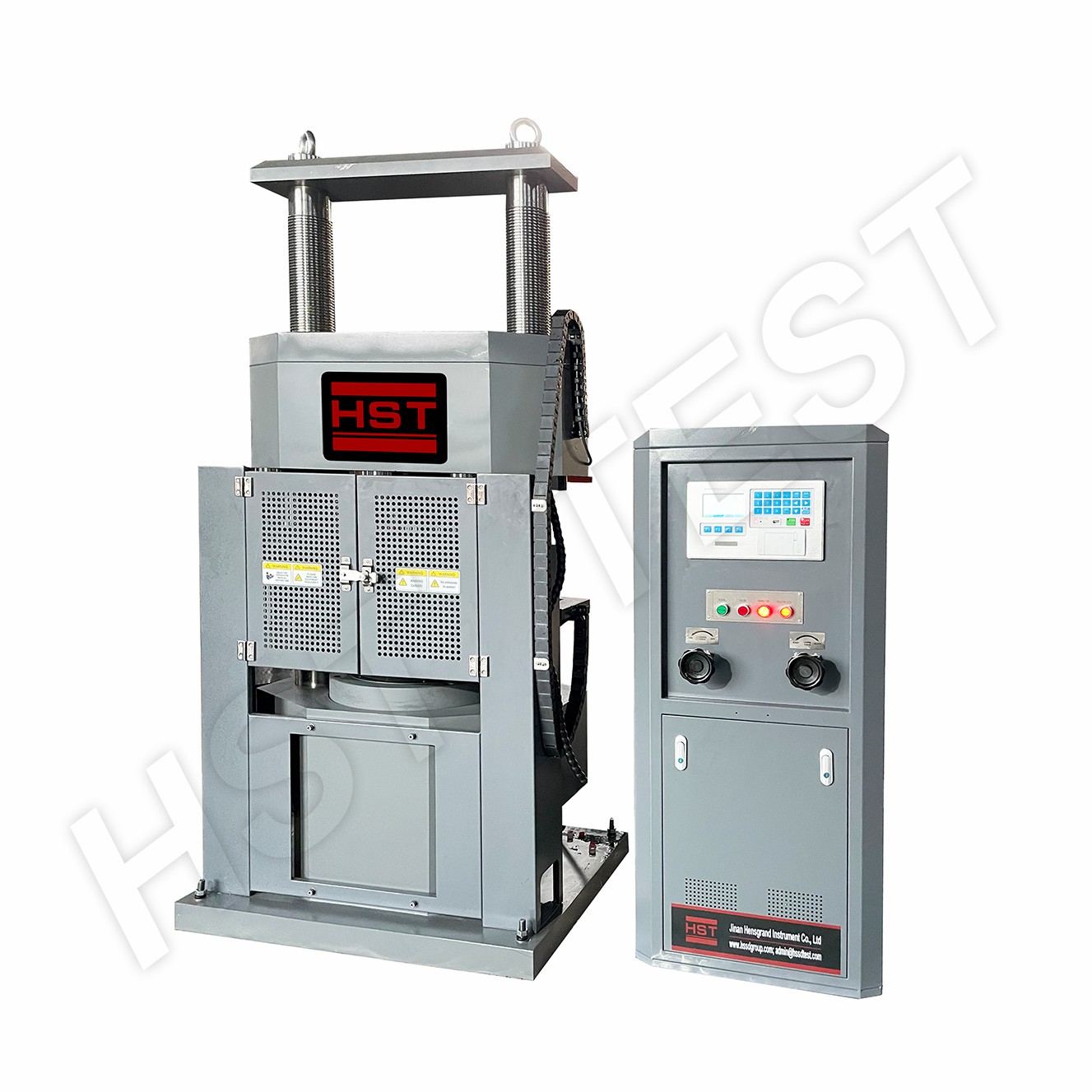

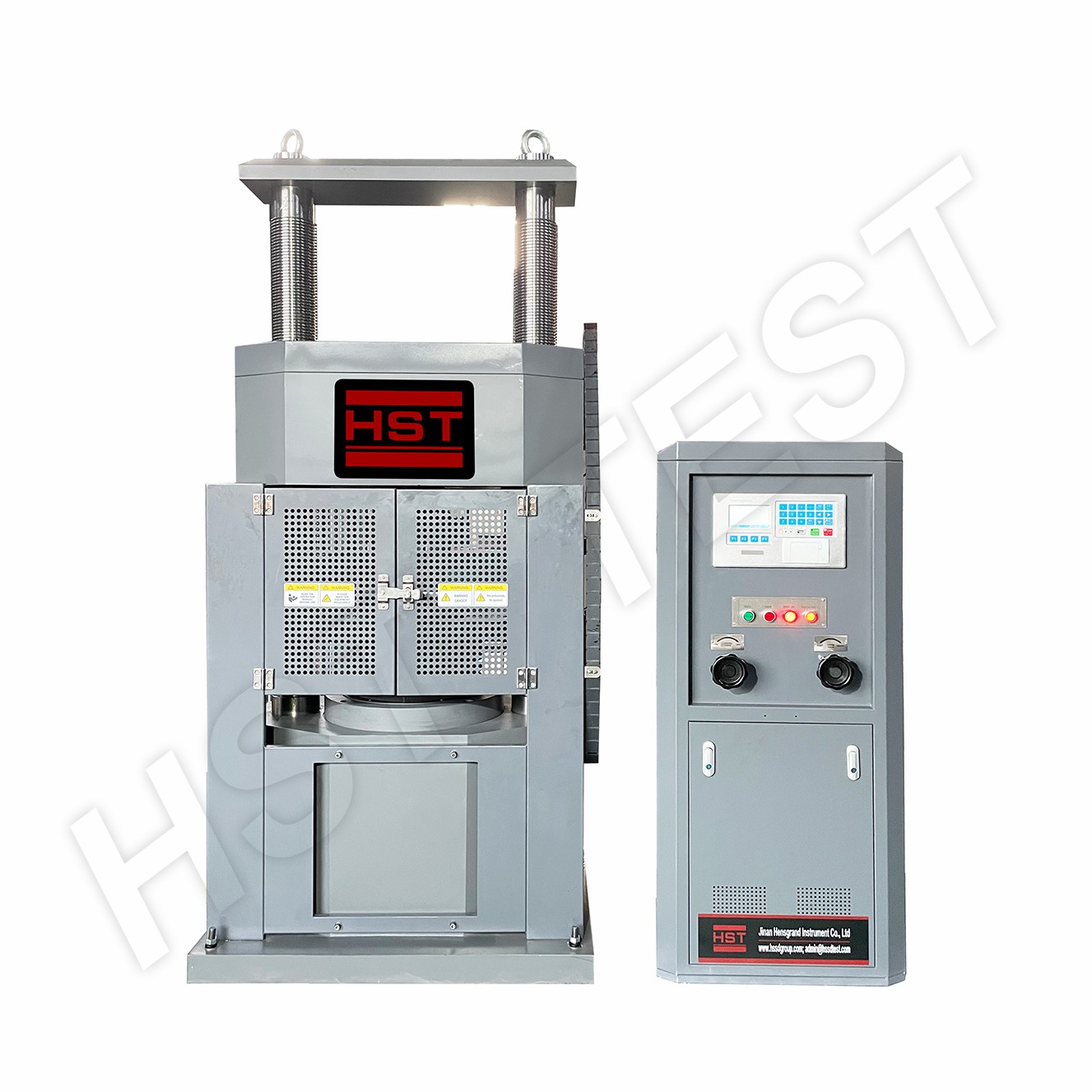

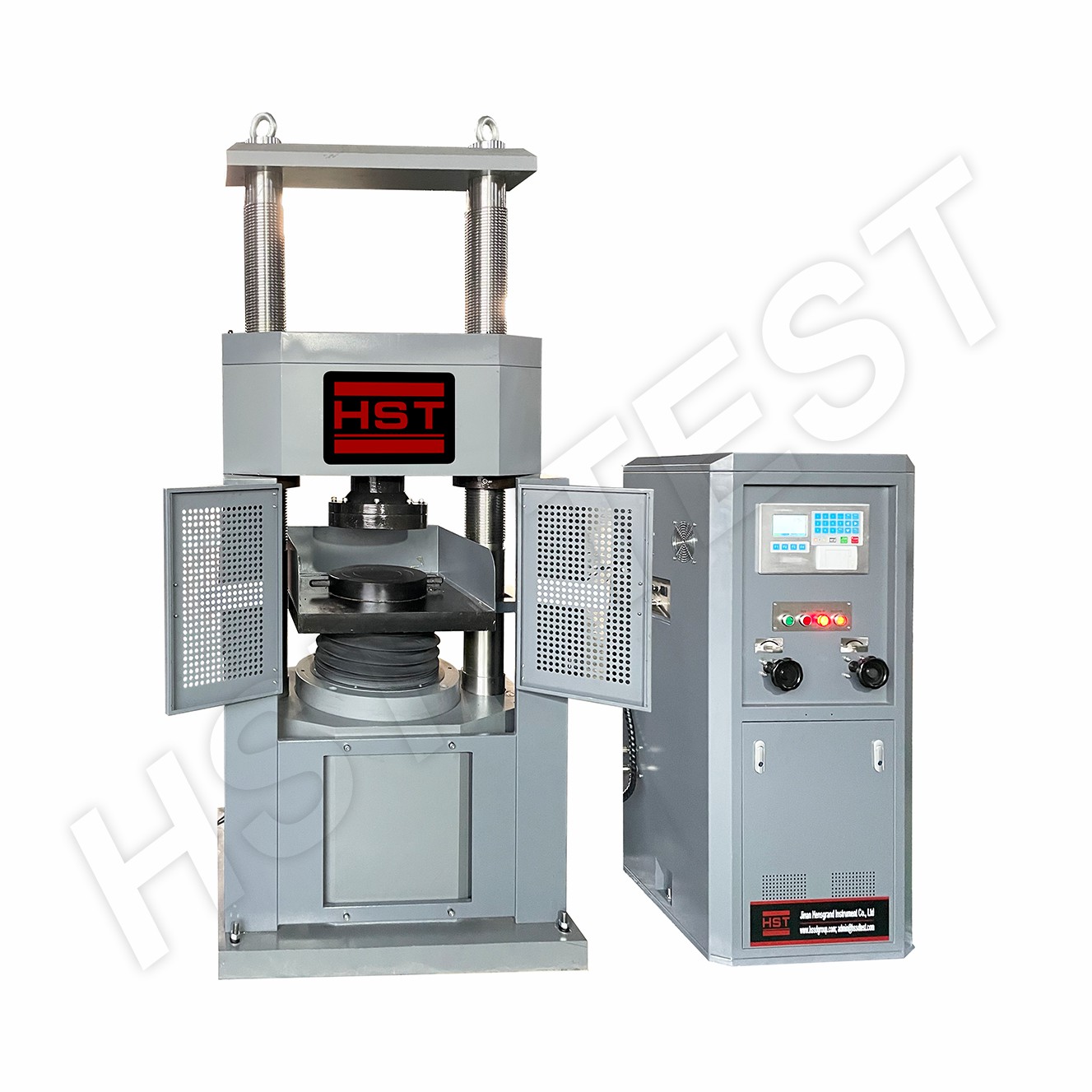

The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed
requirements.
Model |
YES-3000E |
Max. load |
3000kN/300Ton |
Machine Class |
1 class |
Range of test force |
4% ~100%FS |
Host Structure |
Double electric screw ball adjust test space |
Indicating value accuracy |
±1% |
Piston stroke |
200mm |
Distance between upper and lower platen |
550mm |
Upper and lower platen size |
Φ300mm (Can be customized) |
Display |
LCD |
Power supply |
AC380V/50Hz/3 phase(can be customized) |
Host size Control cabinet size |
960×740×2080 mm 600*540*1370mm |
Weight |
3100 kg |
Overall power Power of oil pump motor |
3kw 2.2kw |
Main unit and oil source control cabinet |
1 set |
High precision compression sensor |
1 pc |
English version operate instrument |
1 suit |
Micro printers |
1 set |
Specialized compression attachment |
1 suit |
Accompany tools |
1 suit |
Accompany documents |
1suit |
Flexure fixture |
Optional |
