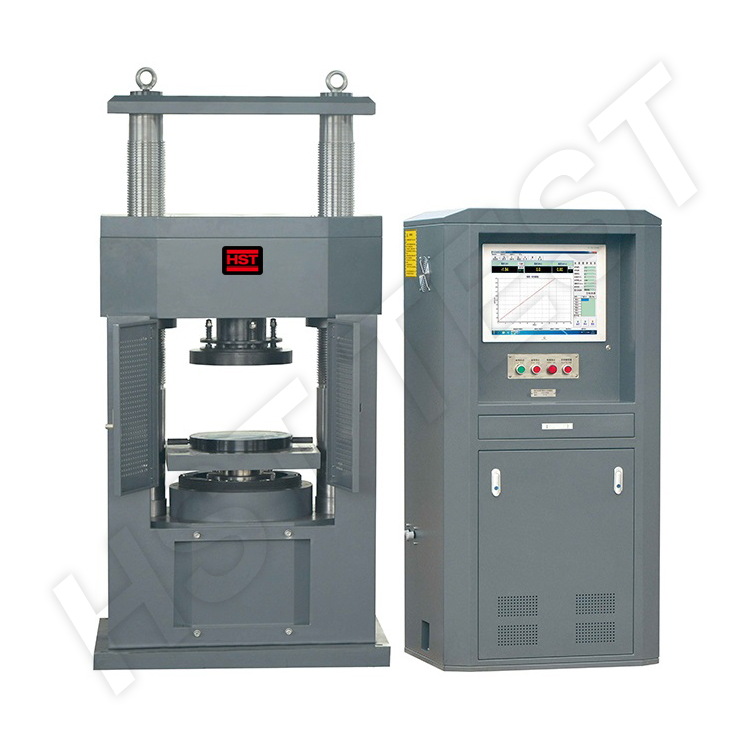

YAW-2000EG Computer Control Compression Testing Machine
1. Application YAW-EG Series Compression Testing Machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely us
Standards:
Request A Quote Files Download
1. Application
YAW-EG Series Compression Testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Double electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
YAW-EG Series Compression Testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
2.1 Computer control up, down, test, stop and loading progress
2.2 Double electric screw ball adjust test space
2.3 Unibody desktop oil source control cabinet
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading
2.6 Can auto printing
3. Technical parameters
| Model | YAW-2000EG |
| Max. Load | 2000kN |
| Control method | Computer auto control loading process |
| Test class | 1 class |
| Testing range | 1%-100%FS |
| Load display accuracy | Better than ±1% |
| Piston stroke | 150mm |
| Distance between upper and lower platen | 600mm |
| Piston displacement speed | 0-60mm/min |
| Loading speed | 0.02%-2%FS/s |
| Size of upper and lower platen | Φ300mm |
| Power supply | 2.5Kw/AC380V |
