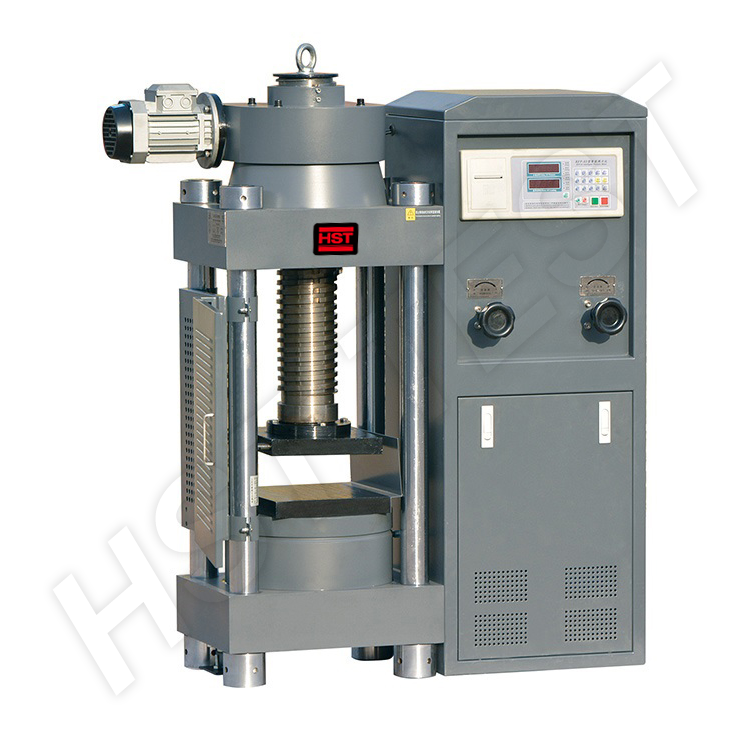

YES-D Series Digital Display Compression Testing Machine(Electric adjust Space)
Digital display Compression Testing machine mainly used for concrete and other material compression resist testing.
Standards:
ISO,ASTM
Request A Quote Files DownloadYES-D Series Digital Display compression testing machine(Electric adjust Space)
Application
Digital display Compression Testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.Main Specifications
| Model | YES-2000D | YES-3000D |
| Max. load | 2000kN/200Ton | 3000kN/300Ton |
| Machine Class | 1 class | |
| Range of test force | 4% ~100%FS | |
| Testing space adjust method | Electric adjust | |
| Indicating value accuracy | ±1% | |
| Piston stroke | 50mm | 80mm |
| Distance between platens | 320mm | |
| Upper platen size |
240×240mm (Can be customized) |
265×265 mm (Can be customized) |
| Lower platen size |
250×300mm (Can be customized) |
360×285 (Can be customized) |
| Display | LCD | |
| Power supply | AC380V/50Hz/3 phase(can be customized) | |
| Size | 950×420×1350 mm | 1000×500×1500 |
| Weight | 950kg | 1500kg |
