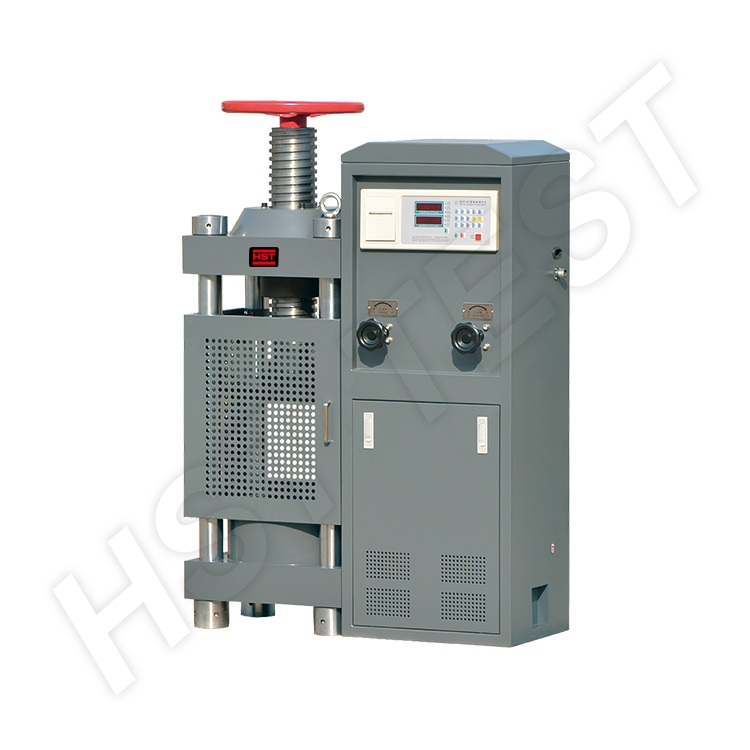

YES-1000,2000kN Digital Display Compression Testing Machine(Manual adjust Space)
Digital display compression testing machine mainly used for concrete and other material compression resist testing.
Standards:
ISO,ASTM
Request A Quote Files DownloadYES-1000,2000kN Digital Display compression testing machine(Manual adjust Space)
Application
Digital display Compression Testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.Main Specifications
| Model | YES-1000 | YES-2000 |
| Max. load | 1000KN /100Ton | 2000kN/200Ton |
| Machine Class | 1 class | |
| Range of test force | 4% ~100%FS | |
| Testing space adjust method | Manual adjust | |
| Indicating value accuracy | ±1% | |
| Piston stroke | 30mm | |
| Diameter of Piston | 250mm | |
| Distance between platens | 320mm | |
| Upper platen size | 220*250mm (Can be customized) | |
| Display | LCD & Computer screen display | |
| Power supply | 0.75KW, AC380V/50Hz/3 phase(can be customized) | |
| Size | 880*480*1400 mm | |
| Weight | 600kg | |
| Power | 380V/220V / 0.75KW | |
